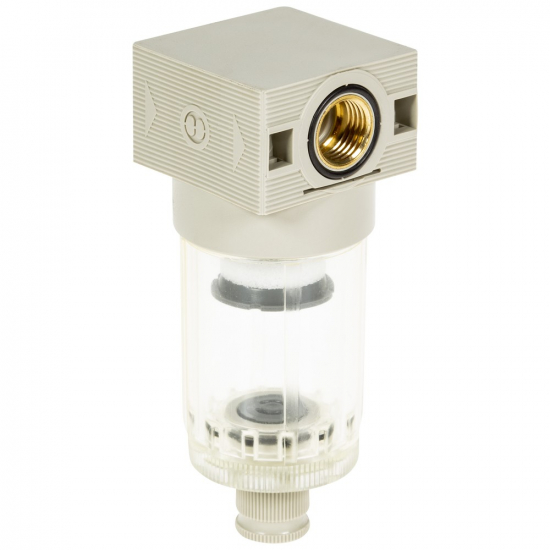

PNEUMATIC FILTER 1/4 20MIC RMSA BIT

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5201002

  ManufacturerMETAL WORK

  Characteristics

  - BIT filter
  - RMSA: condensate is emptied in pressureless condition, or by manually pressing the valve upward
  - thread G 1/4"
  - filtration grade 20 microns
  - max. working pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 860 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 1200 Nl/min
  - max. operating temperature +50 °C
  - media: compressed air
  - tank volume 16 cm³
  - fastening screws M4
  - mounting position vertical
  - weight 0.4 kg
