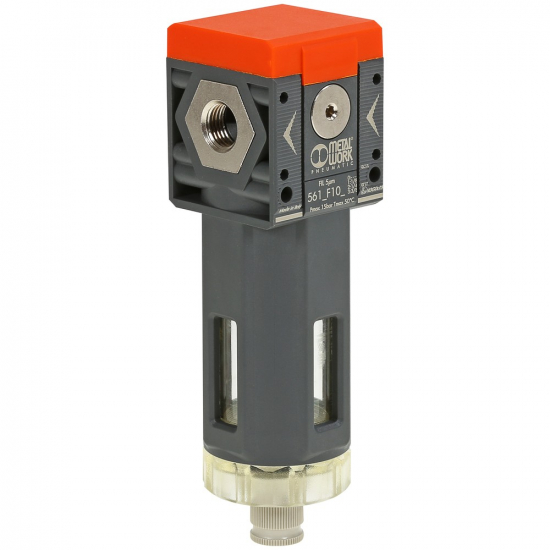

PNEUMATIC FILTER 1/4 SY1 5MIC SYNTHESIS

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5612F102

  ManufacturerMETAL WORK

  Characteristics

  - Syntesi filter SY1
  - RMSA: condensate drained in depressurized state, or by pressing the valve upward by hand
  - thread G 1/4"
  - thread exhaust G 1/8"
  - filtration grade 5 micron (standard ISO8573-1: 3.7.4)
  - max. working pressure 15 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 1200 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 1650 Nl/min
  - flow (exhaust) at 6.3 bar 500 Nl/min
  - operating temperature -10...+50 °C
  - media: compressed air or noble gas
  - tank volume 30 cm³
  - mounting position vertical
  - mounting screws M4
  - weight 173 g

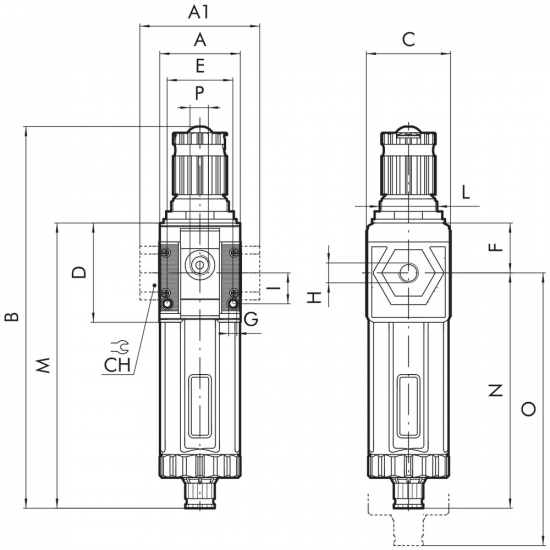

  Dimensions (mm):
  - A 42
  - B 148
  - C 44
  - D 51.5
  - E 33.5
  - F 25.8
  - G M4
  - I 16
  - L 202
  - Q (exhaust) 1/8"
