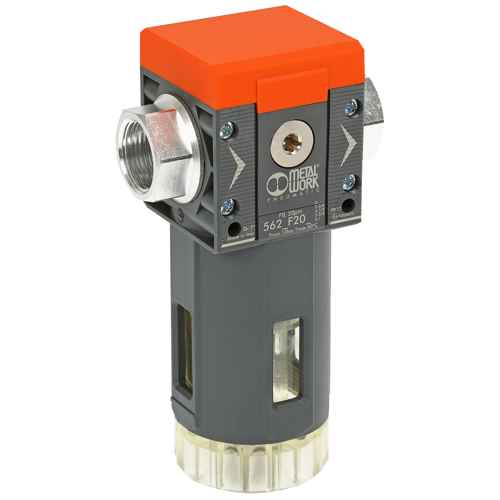

Pneumatic Filter 3/4 Sy2 20Mic Synthesis

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5625F205

  ManufacturerMETAL WORK

  Characteristics

  - SYNTHESES filter SY2
  - RMSA: condensation drainage takes place automatically only by pressing and turning the knob
  - thread G 3/4"
  - without removal of the grid G 1/4"
  - a filtration rate of 20 microns (standard ISO8573-1: 4.7.4)
  - max. working pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 3800 Nl/min
  - max. flow pressure of 6.3 bar (pressure drop of 1 bar) of 5200 Nl/min
  - flow (exhaust) at 6.3 bar pressure of 1500 Nl/min
  - Operating temperature -10 ... + 50 ° C
  - medium: air or inert gas
  - volume of the container 70 cm³
  - Mounting vertically
  - Mounting screws M5
  - Weight 445 g

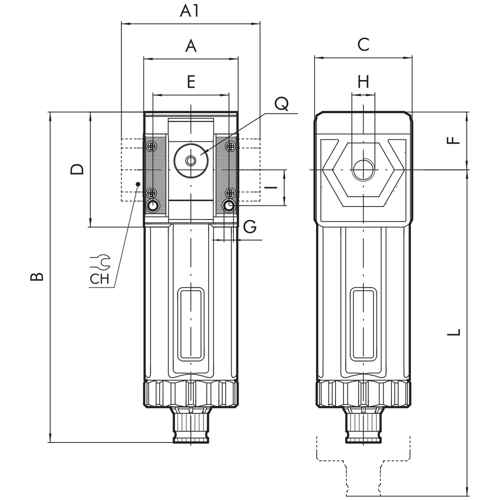

  Dimensions (mm):
  - A 61
  - A1 95
  - B 178
  - C 61
  - CH 32
  - D 70.5
  - E 47.5
  - F 38.2
  - G M5
  - I 22.5
  - L 245
  - Q (exhaust) 1/4 "
