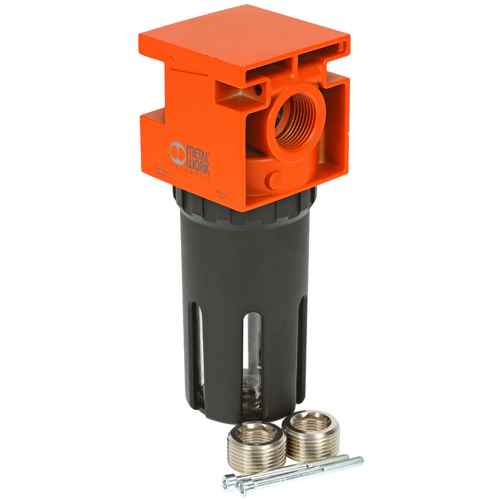

Pneumatic Filter 3/4 20Mic New Deal

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDMWP1521006

  ManufacturerMETAL WORK

  Characteristics

  - New Deal filter
  - RMSA: Condensate drain is done automatically by turning and pushing the knob
  - thread G 3/4 "
  - A filtration rate of 20 microns
  - max. working pressure 18 bar
  - max. flow rate at 6.3 bar (pressure drop 0.5 bar) 9100 Nl/min
  - max. flow rate at a pressure of 6.3 bar (pressure drop at 1 bar) of 11000 Nl/min
  - max. operating temperature +50 ° C
  - medium: compressed air
  - Tank capacity is 170 cm³
  - fixing screws M6 x 75
  - Vertical mounting
  - Weight 1.2 kg

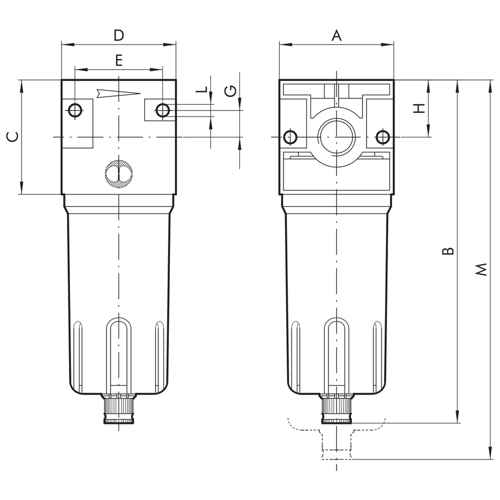

  Dimensions (mm):
  - H 80
  - B 235
  - C 80
  - D 80
  - E 66
  - G 22
  - H 40
  - L M6
  - M 325
