  Product IDMWP1221006

  ManufacturerMETAL WORK

  Characteristics

  - new given filter
  - RMSA: condensate drainage occurs automatically just by pressing and turning the knob
  - thread G 1/4 "
  - a filtration rate of 20 microns
  - maximum operating pressure of 18 bar.
  - max flow pressure of 6.3 bar (0.5 bar pressure drop) 1300. Nl / min
  - max flow at 6.3 bar pressure (pressure drop for one bar) 1720 nl / min
  - max operating temperature of 50 °C
  - medium: air
  - reservoir volume 10 cc
  - fastening screws M4 x 40
  - installation in an upright position
  - w 0.4 kg

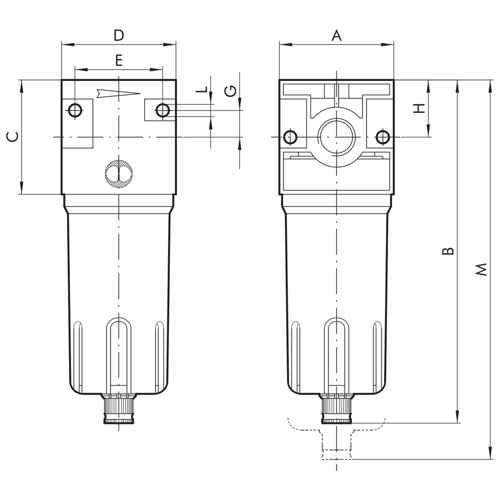

  Dimensions (mm):
  - A 42
  - B 142
  - C 42
  - D 42
  - E 32
  - G 10
  - H 21
  - L M4
  - M 185
