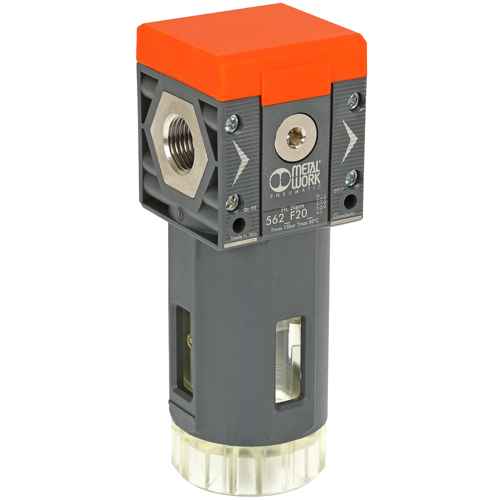

Pneumatic Filter 1/2 Sy2 20Mic Synthesis

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP5624F204

  ManufacturerMETAL WORK

  Characteristics

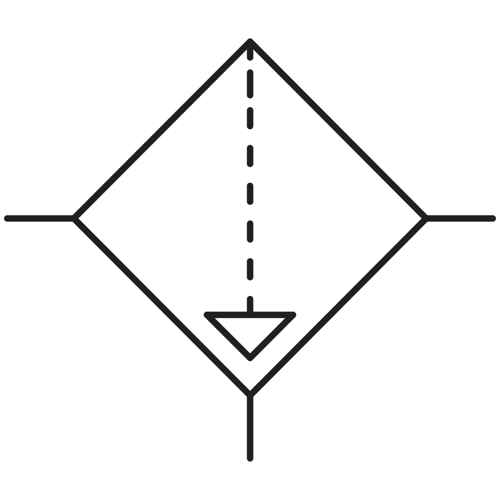

  - Synthesis filter SY2
  - RMSA: Condensate drainage is done automatically by turning and pressing the knob
  - Thread G 1/2"
  - Grid for venting G 1/4"
  - Filtration grade of 20 microns (standard ISO8573-1: 4.7.4)
  - max. working pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 3800 Nl/min
  - max. flow at a pressure of 6.3 bar (pressure drop 1 bar) at 5200 Nl/min
  - flow (venting) at 6.3 bar at 1500 Nl/min
  - Operating temperature -10 ... + 50 ° C
  - medium: compressed air or inert gases
  - Tank capacity is 70 cm³
  - Mounting vertically
  - Mounting screws M5
  - Weight 461 g

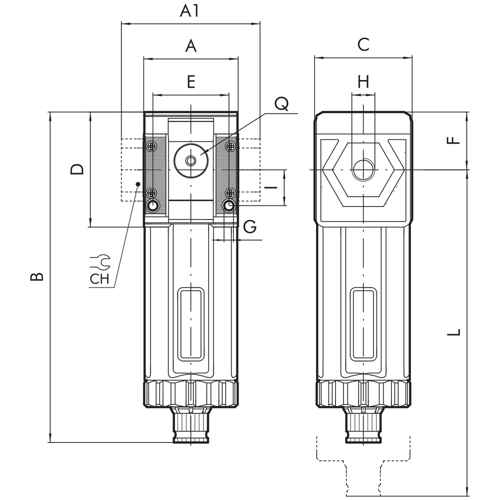

  Dimensions (mm):
  - A 61
  - B 178
  - C 61
  - D 70.5
  - E 47.5
  - F 38.2
  - G M5
  - I 22.5
  - L 245
  - Q (venting) 1/4 "
