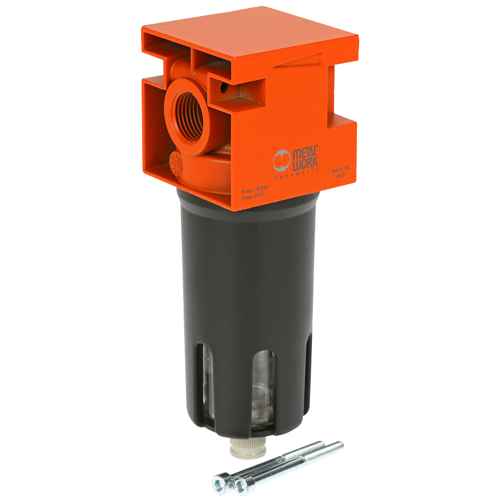

Pneumatic Filter 1/2 20Mic New Deal

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDMWP1421006

  ManufacturerMETAL WORK

  Characteristics

  - New Deal filter
  - RMSA: The condensate drainage is done automatically by turning and pressing the knob
  - thread G 1/2 "
  - A filtration rate of 20 microns
  - max. working pressure 18 bar
  - max. flow at 6.3 bar pressure (pressure drop 0.5 bar) 3100 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 4100 Nl/min
  - max. operating temperature +50 ° C
  - medium: compressed air
  - Tank capacity is 45 cm³
  - mounting screws M4 x 55
  - Installation upright
  - Weight 0.9 kg

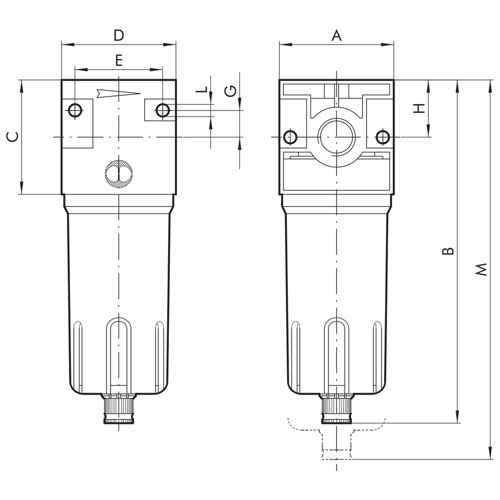

  Dimensions (mm):
  - H 60
  - B 180
  - C 60
  - D 60
  - E 46
  - G 14
  - H 30
  - L M4
  - M 230
