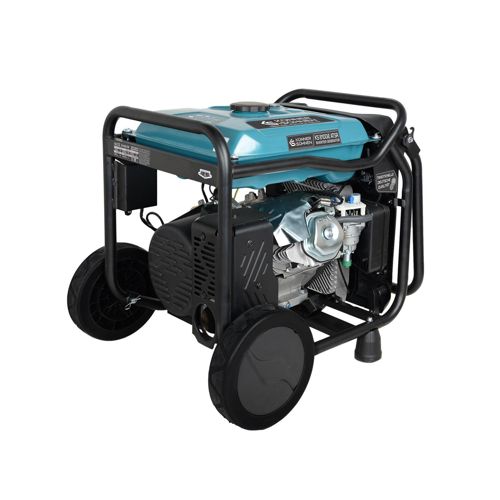

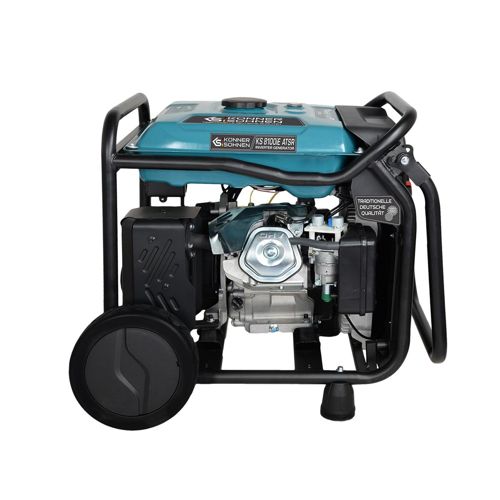

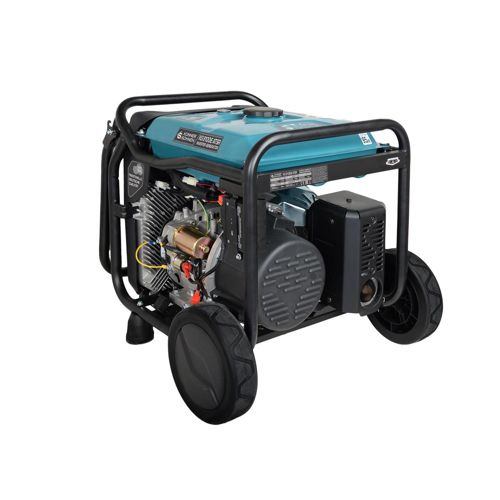

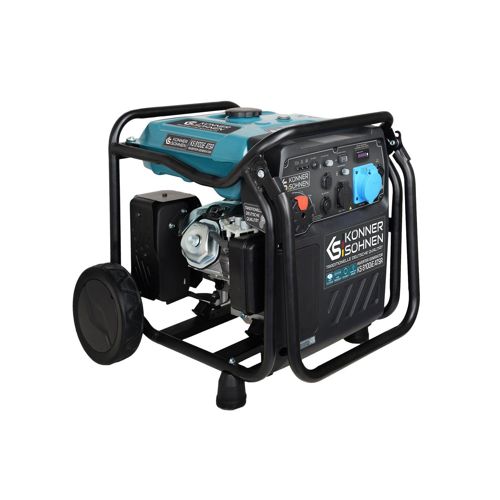

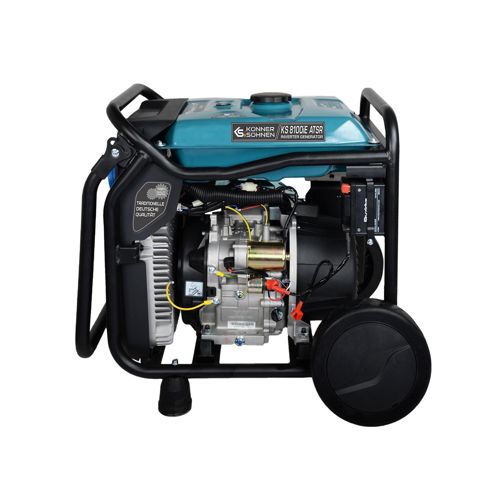

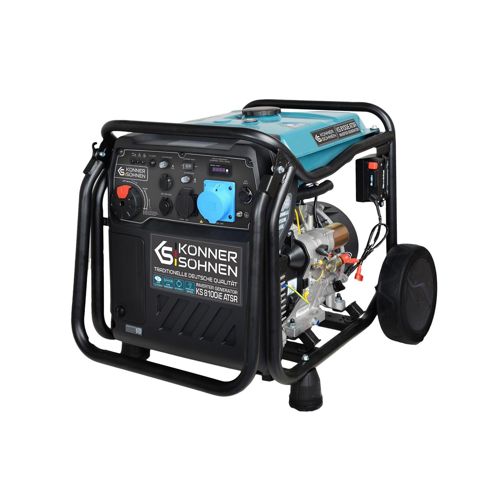

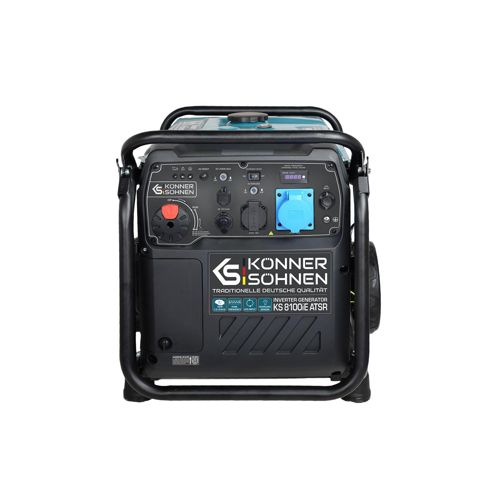

Generator Inverter KS 8100iE ATSR

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKS8100iEATSR

  ManufacturerKönner & Söhnen

  Characteristics

  Gas Inverter Generators are a user-friendly and portable power source. The series of inverter generators includes models with a power range from 1.8 to 8.0 kW. Dual conversion of electrical energy delivers a pure sine wave and a frequency of 50 Hz, which is optimal for reliable operation of sensitive and high-precision electronics.

  All models are based on robust engines that comply with all European quality standards, including the EURO V emission standard. The engines in K&S Inverter Generators have an ECO mode that allows the generator to run at low speeds and reduces fuel consumption by up to 50%.

  PURE SINE WAVE
  The built-in control unit with microprocessor control ensures that the generator's technical processes are controlled and monitored with a stable frequency of 50 Hz and voltage of 230V.

  ROBUST ENGINE
  Könner & Söhnen's robust engine meets all European quality standards, including the latest EURO V emission standards. The robust K&S engine is equipped with an individual serial number that allows monitoring of production and service quality. The powerful generator with copper winding and high-performance engine ensures flawless and long-term operation. It is recommended for devices sensitive to power consumption quality (heaters, medical equipment, audio equipment, etc.).

  3-IN-1 EASY ENGINE START
  The 3-in-1 universal motor contactor for easy and convenient generator start combines the functions of a fuel valve, a starter, and an electric starting motor.

  ECO MODE
  The ergonomic control panel is equipped with an ECO mode switch. This mode reduces fuel consumption at light loads due to lower engine speeds by up to 50%.

  ATS CONNECTION
  The ATS unit (automatic switch to emergency power) automatically starts the generator and transfers the load when the main power is interrupted, and automatically stops the generator when the main power is restored. The generator is equipped with an ATS connection (GX 20, 8-pin) for KS ATS 4/25 Gasoline Switch Box.

  ERGONOMIC CONTROL PANEL
  Convenient placement of all basic functions: multifunctional LED display (voltage, frequency, operating hours counter), operation status indicators: overload and short circuit protection, oil shortage protection, reset button to restore the control system and power supply, two USB outputs (5V/1A, 5V/2.1A), standard 12V vehicle socket for various vehicle accessories, gadgets, and battery charging, 230V outlet, and grounding clamp.

  GENERATOR WITH 100% COPPER WINDING
  The high-quality brushless generator with permanent magnets and 100% copper windings can handle high loads and thereby ensure long-term and reliable operation of the generator.

  TRANSPORT KIT
  Inverter generators from Köner & Söhnen are equipped with a transport kit for convenient handling. Two wheels and a handle facilitate transport for mobile applications of the generator.

  Technical specification:
  Voltage: 230
  Max power, kW: 8.0
  Rated power, kW: 7.2
  Frequency, Hz: 50
  Current (max), A: 34.8
  Outlet: 1 x Schuko 230 V, 1 x CEE 230 V 32 A
  Starter: Electric
  Fuel tank volume, liters: 20
  Average operating time (50% power), h***: 7.1
  LED display: Voltage, frequency, operating hours
  Noise level Lpa (7m)/Lwa, dB: 70/95
  DC current, V/A: 12V/8.3A
  USB outputs: 5V/1A, 5V/2.1A
  Engine model: KS 480i
  Cylinder volume, cm3: 458
  Engine type: Petrol-driven single-cylinder, four-stroke air-cooled
  Engine power, hp: 16
  Possibility of parallel connection: ?
  ATS outlet: +
  Oil distribution volume, liters: 1.1
  Battery, A·h: 1.6
  Protection class: IP23M
  Net dimensions (LxWxH), mm: 600x510x560
  Gross dimensions (LxWxH), mm: 725x505x555
  Net weight, kg: 68
  Gross weight, kg: 71
  EAN code: 4260405364725
