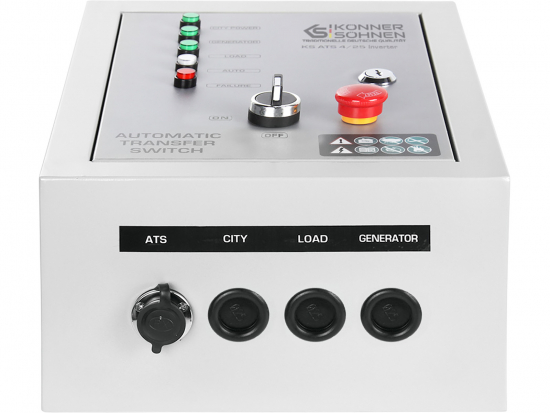

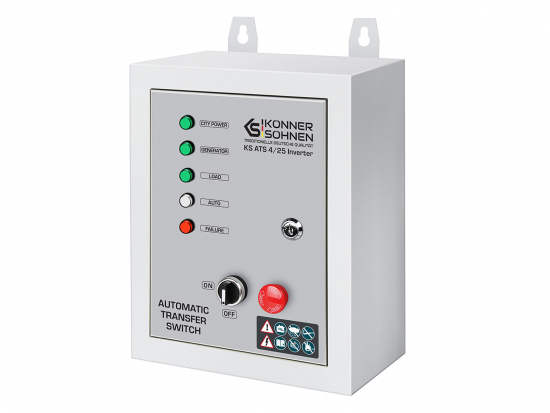

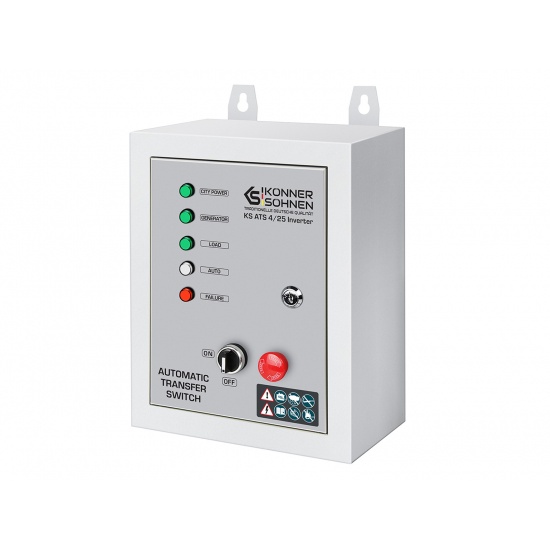

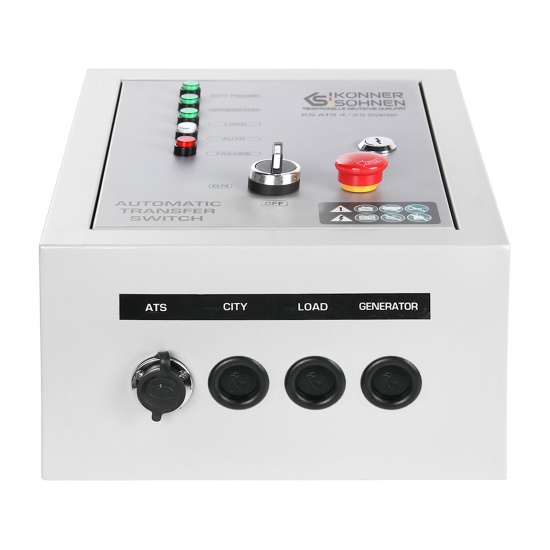

ATS Box KS ATS 4/25 Gasoline

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSATS4_25GASOLINE

  ManufacturerKönner & Söhnen

  Characteristics

  The KS ATS 4/25 Gasoline ATS (Automatic Transfer Switch) unit from the German brand “Könner & Söhnen” automatically starts the generator and transfers load to it when the main power source is turned off and automatically stops the generator when the central power supply is restored. It is compatible with gasoline inverter generators that are equipped with a 8-pin connector for an automatic transfer switch unit (ATS input). The ATS unit has a PLC for programming the engine starting time after power outage, the engine warm-up time before connecting power consumers as well as for signaling errors. It has a generator emergency stop button. The ATS unit can operate both in automatic and in manual mode.


  Programmable Logic Controller for the ATS unit:

  Automatic/manual operation
  Programming of engine starting time after power outage
  Programming of engine warm-up time before connecting to consumer
  Setting of starter operation time
  Engine performance monitoring
  Battery charging when the generator is off


  Technical specifications:

  Peak power demand, Win standby mode: 0.36 W, in operating mode: 1.2 W
  Power (230V), kW5.75 (11.5)
  Current (max) 230 V, A25(50)
  Power 400V, kW13
  Current (max) 400 V, A25
  Working environmentfrom -10°C to +55°C; humidity: ⩽60%
  Storage environmentfrom -10°C to +70°C; humidity: ⩽60%
  Insulation classAC1.0KV / 1min 1mA
  Maximum battery charging current from the built-in power supply, A2
  Control cable length, m5
  Voltage, V230/400
  Frequency, Hz50
  IP protection classIP41
  Net dimensions (LxWxH), mm250 х 140 х 320
  Gross dimensions (LxWxH), mm325 х 200 х 405
  Net weight, kg6.0
  Gross weight, kg6.5
  EAN code4260405364787
