ATS Box KS ATS 4/25 Inverter

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSATS4_25INVERTER

  ManufacturerKönner & Söhnen

  Characteristics

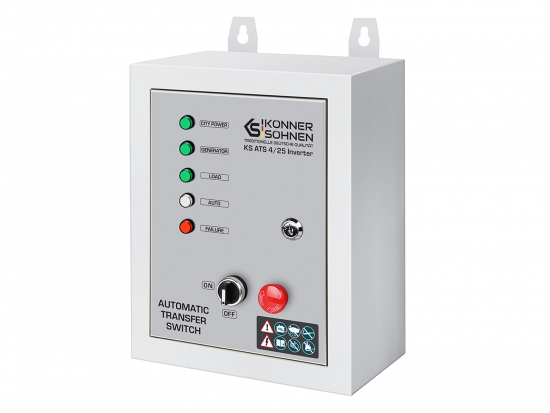

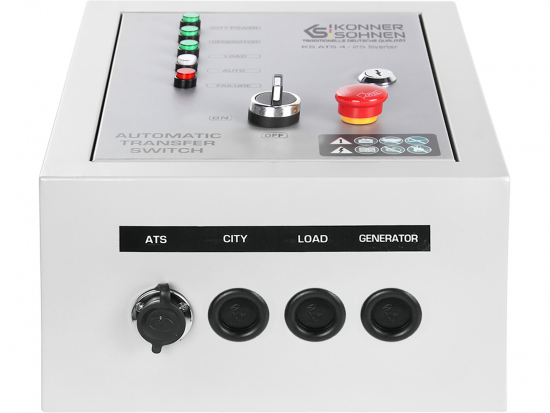

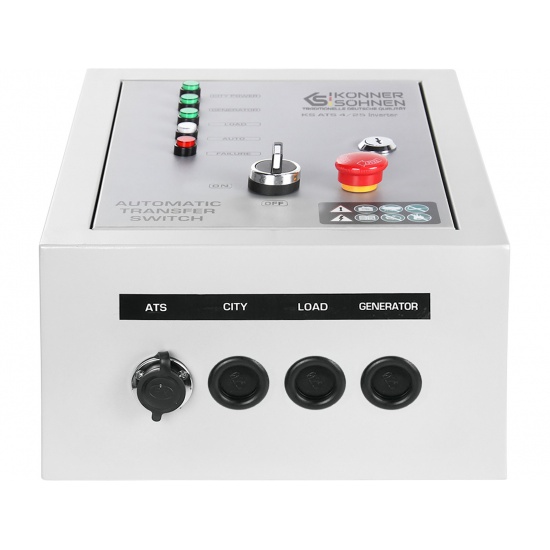

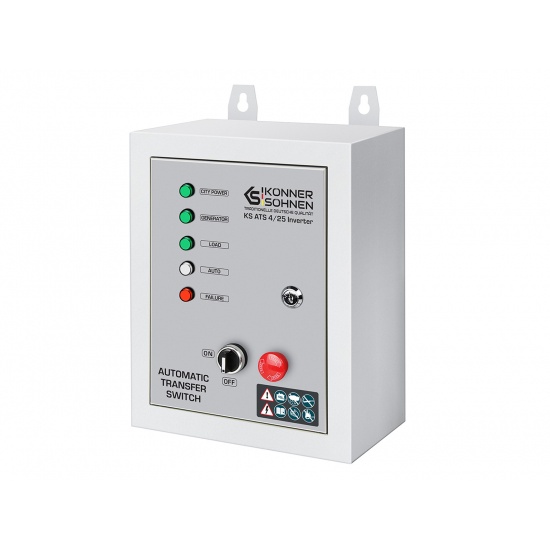

  KS ATS 4/25 Inverter ATS unit (Automatic Transfer Switch) from the German brand "Könner & Söhnen" automatically starts the generator and transfers the load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored. The ATS unit has a PLC (Programmable Logic Controller) for programming the engine start time after a power outage, the engine warm-up time before connecting power consumers, and for signaling faults. It is equipped with an emergency stop button for the generator. The ATS unit can be used in both automatic and manual mode.



  Programmable Logic Controller for the ATS unit:

  Universal design that allows use in single and three-phase networks
  Automatic/manual operation
  Emergency stop button for the generator
  Keeps the battery charged
  7-pin control cable socket

  Technical specifications:

  • Power consumption in standby mode: 0.36 W
  • Power consumption in operating mode: 1.2 W
  • Power (230 V): 5.75 kW (11.5 kW)
  • Current (max, 230 V): 25 A (50 A)
  • Power (400 V): 13 kW
  • Current (max, 400 V): 25 A
  • Operating environment: from -10 °C to +55 °C; humidity: <60 %
  • Storage environment: from -10 °C to +70 °C; humidity: <60 %
  • Isolation class: AC 1.0 kV / 1 min, 1 mA
  • Maximum battery charging current from the built-in power supply: 2 A

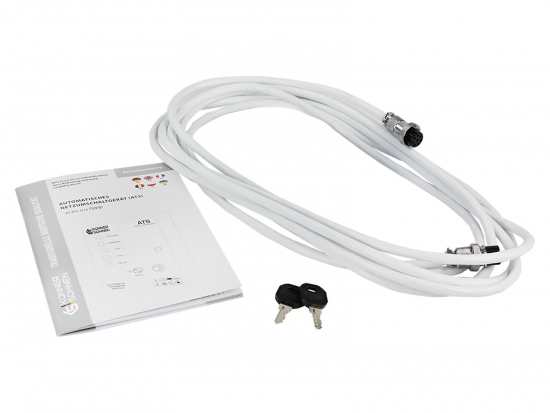

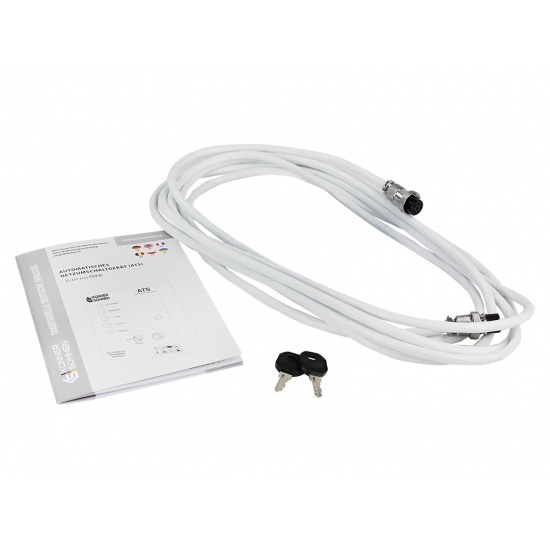

  • Length of control cable: 5 m
  • Voltage: 230/400 V
  • Frequency: 50 Hz
  • IP protection class: IP41
  • Net dimensions (LxWxH): 250 x 140 x 320 mm
  • Gross dimensions (LxWxH): 325 x 200 x 405 mm
