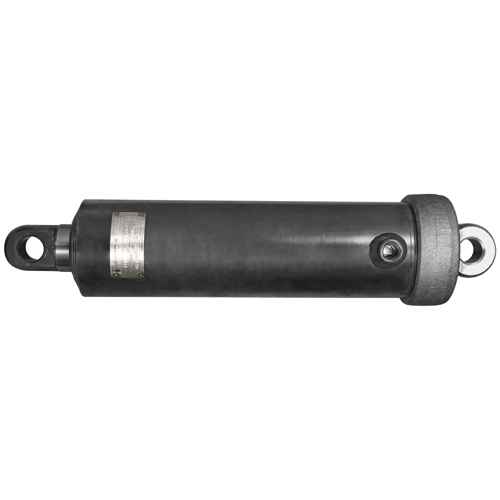

TIPPING CYLINDER 9TN 580-1670MM LOWER MOUNT

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDKSN33

  Manufacturer

  Characteristics

  - No separate locking rings on the bottom of the moving pipes.
  - Surface roughness of pipe surfaces 0.20 micron, very low sealing consumption
  - Operating temperature for seals -40 ... + 110 °
  - max. operating pressure 200 bar
  - rear end of the cylinder is threaded, easily disassembled and usable
  - stroke 1130 mm
  - capacity 9 tons (200 bar)
  - Outer pipe diameter Ű 112 mm
  - Mounting length 560 mm
  - Thread size up / down 30 mm
  - hydraulic connection BSP 1/2 "
  - oil volume 5.5 l

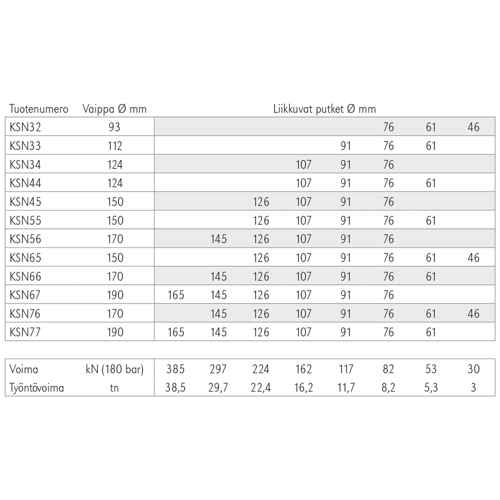

  - moving pipes 61/76/91 mm




  Spare parts / Accessories:
  - T0080 Spark Plug Kit


  Technical specification:

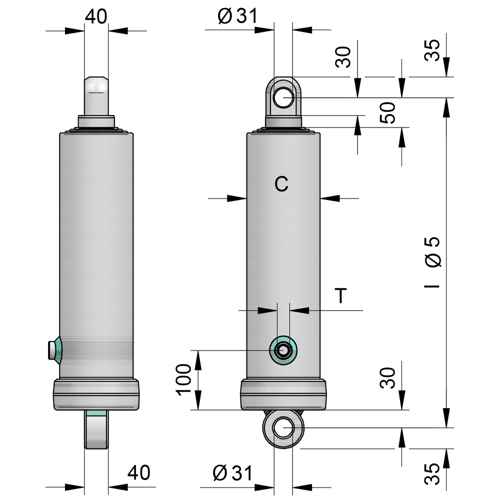

  Approximate dimensions: 625 X 130 X 130 mm
  Weight: 33 kg
