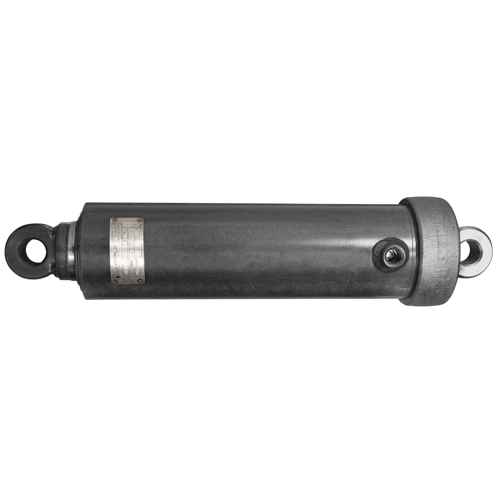

TIPPING CYLINDER 6TN 580-1670MM LOWER MOUNT

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSN32

  Manufacturer

  Characteristics

  - Tip cylinder with lower mounting bracket
  - The moving tubes work "steel on steel", less rocking during operation
  - Tenifer® treated tubes provide excellent corrosion and wear resistance, low internal friction without separate guide rings or bushings
  - No separate locking rings on the lower ends of the moving tubes, the tubes ensure safe operation until the end of the movement
  - Roughness on tube surfaces is 0.20 micrometers, very low seal wear
  - Operating temperature for seals -40...+110 °C
  - Each cylinder is tested at 220 bar
  - Max. working pressure 200 bar
  - Cylinder with threaded bottom, easy to disassemble and maintain
  - Stroke 1130 mm
  - Capacity 6 tons (200 bar)

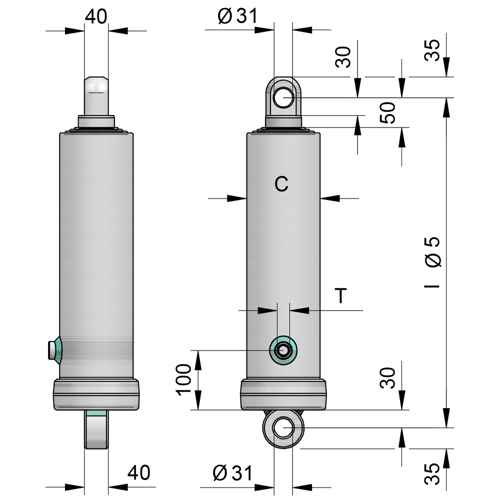

  - Outer tube Ř 93 mm
  - Installation length 580 mm
  - Smallest dimensions when fully retracted 560 mm
  - Pin size upper/lower 30 mm
  - Hydraulic connection BSP 1/2"
  - Oil volume 3.7 l

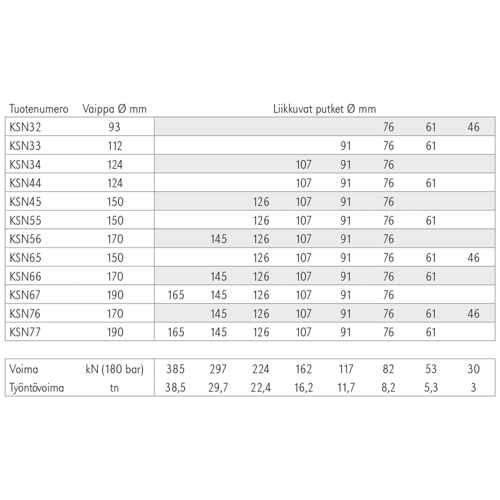

  - Moving tubes 46/61/76 mm
  - Weight 23 kg
