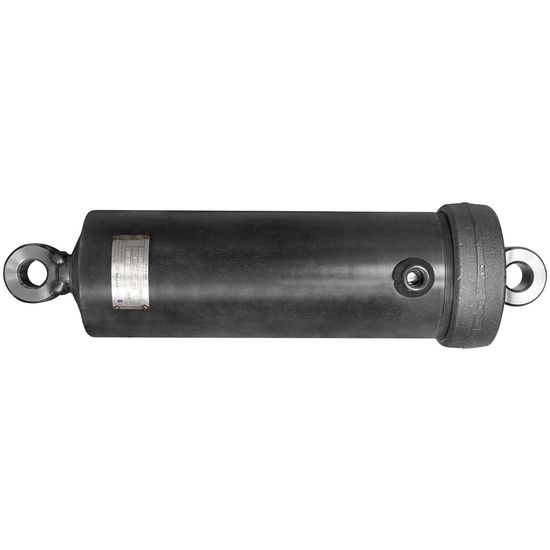

TIPPING CYLINDER 15TN 580-3180MM LOWER MOUNT

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSN76

  Manufacturer

  Characteristics

  - tip cylinder with lower bracket
  - the moving tubes work "metal to metal", less rocking when extended
  - Tenifer® -treated tubes provide excellent corrosion and wear resistance, low internal friction without separate guide rings or bushings
  - no separate locking rings at the lower ends of the moving tubes, the tubes ensure safe operation until the end of the movement
  - surface roughness of the tubes is 0.20 micrometers, very low sealing wear
  - operating temperature for seals -40...+110 °C
  - each cylinder is tested at 220 bar
  - max. working pressure 200 bar
  - cylinder with threaded bottom, easy to dismantle and maintain
  - stroke 2620 mm
  - capacity 15 tons (200 bar)

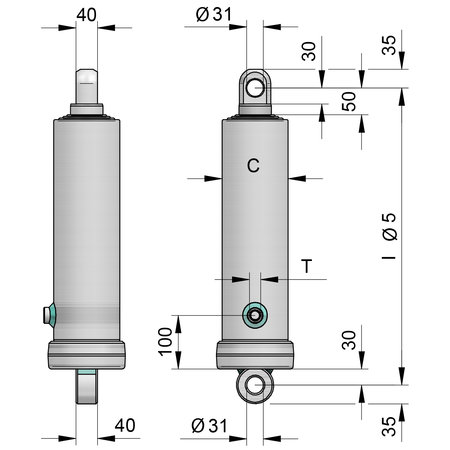

  - outer tube Ř 170 mm
  - installation length 580 mm
  - the smallest dimensions when fully retracted 560 mm
  - pin size upper/lower 30 mm
  - hydraulic connection BSP 3/4"
  - oil volume 21 l

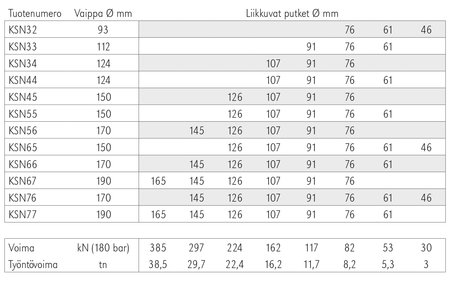

  - moving tubes 46/61/76/91/107/126/145 mm
  - weight 72 kg
