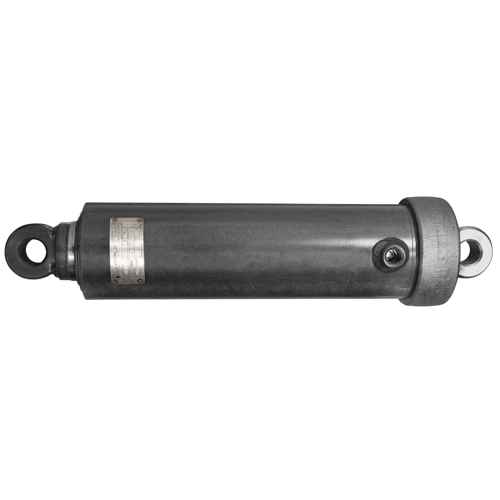

TIPPING CYLINDER 13TN 580-1670MM LOWER MOUNT

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDKSN34

  Manufacturer

  Characteristics

  - Tip cylinder with lower mounting
  - The moving tubes operate "steel against steel", reducing sway during operation
  - Tenifer® treated tubes provide excellent corrosion and wear resistance, low internal friction without separate guide rings or bushings
  - No separate locking rings at the lower ends of the moving tubes, ensuring safe operation until the end of the movement
  - The roughness of the tube surfaces is 0.20 micrometers, significantly reducing seal wear
  - Operating temperature for seals -40...+110 °C
  - Each cylinder is tested at 220 bar
  - Max. working pressure 200 bar
  - Cylinder with threaded bottom, easy to disassemble and maintain
  - Stroke 1130 mm
  - Capacity 13 tons (200 bar)

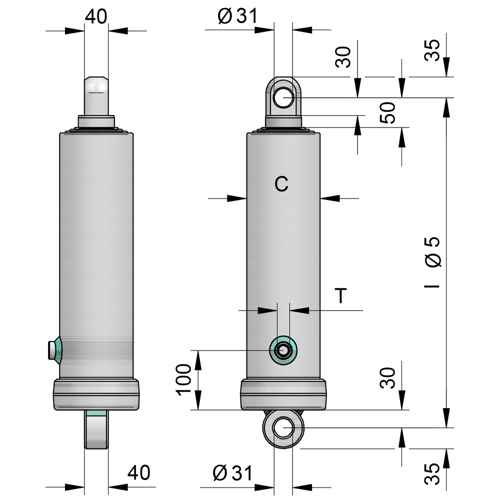

  - Outer tube Ř 124 mm
  - Installation length 580 mm
  - The smallest dimensions when fully retracted 560 mm
  - Pin size upper/lower 30 mm
  - Hydraulic connection BSP 1/2"
  - Oil volume 8 l

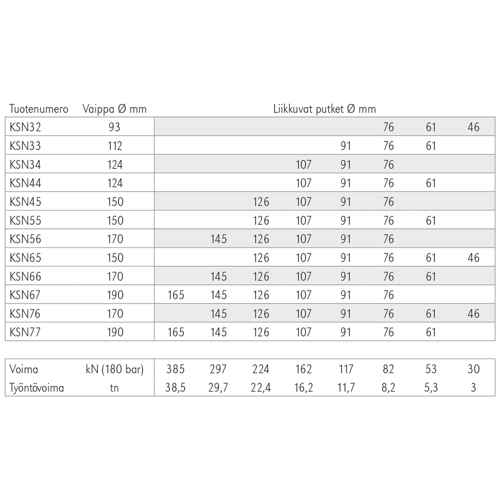

  - Moving tubes 76/91/107 mm
  - Weight 41 kg
