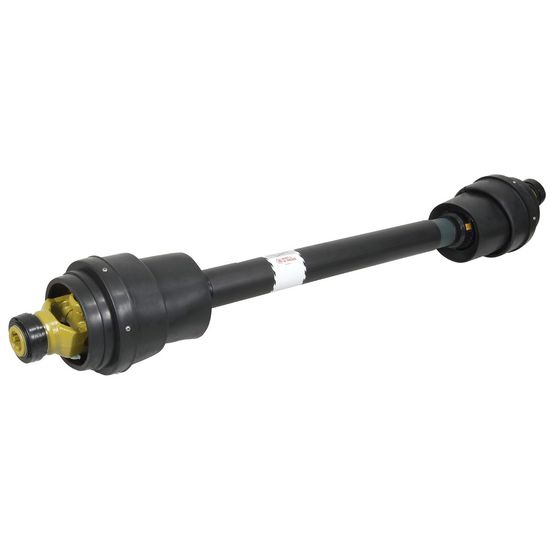

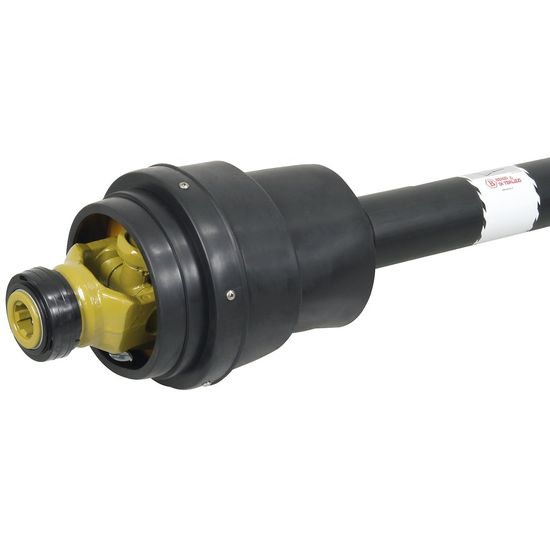

PTO Shaft Wwz2580 1.3/8-6 Wide Angle+1.3/8-6 Wide Angle

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT814621E

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  Technical specification:
  - Type CV7 (WWZ2580)
  - Fork tractor head 1.3 / 8 "-6Z collar lock
  - Fork tool head 1.3 / 8 "-6Z collar lock
  - Power 540 rpm 66 kW / 90 hp / 1175 Nm
  - Power 1000 rpm 102 kW / 139 hp / 975 Nm
  - length L 1210 mm, M min. 1458 mm, M max. 1840 mm
  - squares A / B 36 x 89 mm, C / D 32 x 110 mm, E / F 36 x 89 mm
  - inner profile star A 51 mm, B 37 mm Rilsan coating
  - outer pipe star A 61 mm, B 47 mm, S 4.5 mm
  - max static load 3000 Nm
  - max continuous operating angle 25 °
  - max immediate operating angle 80 °
  - Trailers for guiding applications, peat machines, etc.
  - values determined with continuous load, 10 ° angle and 1000 operating hours
