PTO Shaft W2300 1.3/8-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT804086

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: L04 (W2300)
  - splines: 6
  - power 540 rpm: 28 kW / 38 hp / 500 Nm
  - power 1000 rpm: 44 kW / 60 hp / 415 Nm
  - length: L 860 mm, M min. 1050 mm, max. 1420 mm
  - cross size: A/B: 27 x 74.5 mm
  - inner tube: A 34.5 mm, B 40, S 4 mm
  - outer tube: A 41 mm, B 48 mm, S 3 mm
  - max. static load 1550 Nm
  - applications: rakes, plows, harrows, small sprinklers, manure spreaders, harvesters, hay tedders, small bale presses, circular saws, utility trailers, potato and beet machines, circular saws and log splitters

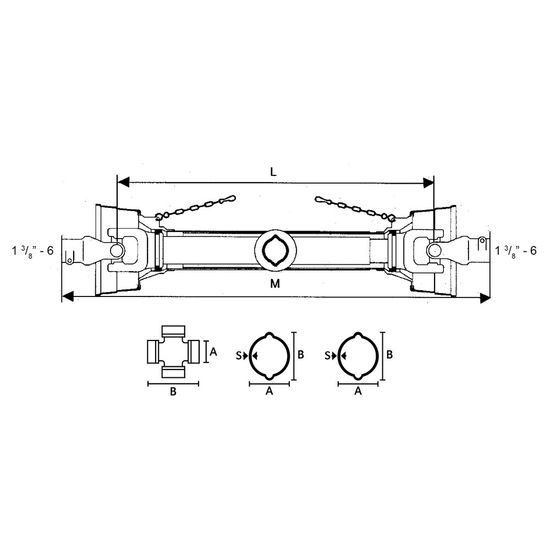

  See image for dimensions.
  Values established with continuous load, 5° angle and 1000 operating hours.
