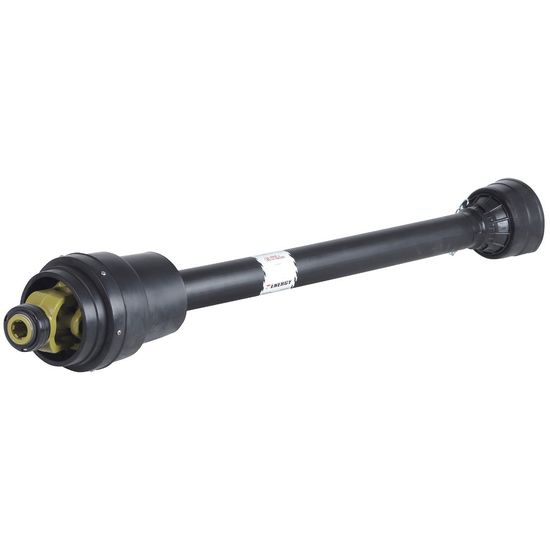

PTO Shaft Wwe2580 Std 1.3/8-6 Wide Angle 1.3/8-6 Evo

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT812621E

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: W60 (WWE2580STD)
  - fork tractor side: 1.3/8"-6Z
  - fork work machine side: 1.3/8"-6Z
  - power 540 rpm: 66 kW / 90 hp / 1175 Nm
  - power 1000 rpm: 102 kW / 139 hp / 975 Nm
  - length: L 1210 mm, M min. 1454 mm, M max. 1919 mm
  - universal joint: A/B: 36 x 89 mm, C/D 32 x 110 mm, E/F 36 x 89 mm
  - hardened inner tube: lemon A 39.5 mm, B 49 mm, S 4.5 mm
  - outer tube: lemon A 48 mm, B 57.5 mm, S 4 mm
  - max. static load: 2300 Nm
  - max. continuous operating angle: 25°
  - max. temporary operating angle: 80°
  - recommended use: trailers, bale equipment, peat machines etc.
  - see image for dimensions
  - values determined with continuous load, 10° angle, and 1000 operating hours.
