PTO Shaft Wwe2580 1.3/8-6 Wide Angle 1.3/8-6 Evo

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDT813621E

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: W65 (WWE2580)
  - fork tractor side: 1.3/8"-6Z locking collar
  - fork work machine side: 1.3/8"-6Z pin lock
  - power 540 rpm: 66 kW / 90 hp / 1175 Nm
  - power 1000 rpm: 102 kW / 139 hp / 975 Nm
  - length: L 1210 mm, M min. 1454 mm, M max. 1919 mm
  - universal joint: A/B: 36 x 89 mm, C/D 32 x 110 mm, E/F 36 x 89 mm
  - hardened inner profile: star A 51 mm, B 37 mm
  - outer tube: star A 61 mm, B 47 mm, S 4.5 mm
  - max. static load: 3000 Nm
  - max. continuous operating angle: 25°
  - max. temporary operating angle: 80°
  - recommended use: trailers, bale equipment, peat machines etc.

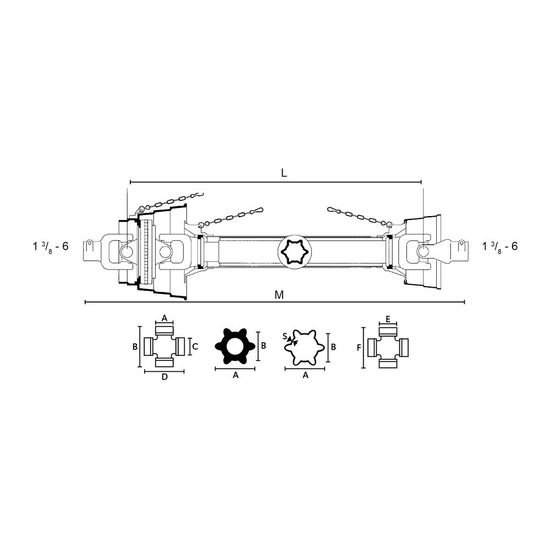

  - see image for dimensions
  - values determined with continuous load, 10° angle, and 1000 operating hours.
