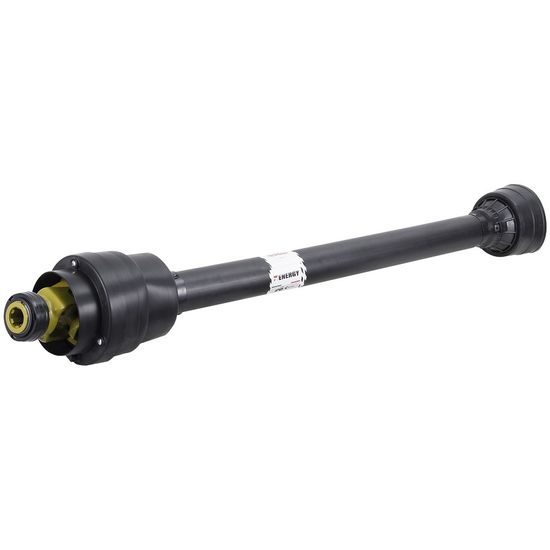

PTO Shaft Wwe2480 1.3/8-6 Wide Angle 1.3/8-6

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDT809421

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: W50 (WWE2480)
  - splines: 6
  - power 540 rpm: 39 kW / 53 hp / 695 Nm
  - power 1000 rpm: 61 kW / 83 hp / 580 Nm
  - length: L 1210 mm, M min. 1428 mm, max.2100 mm
  - universal joint: A/B: 32 x 76 mm, C/D 27 x 98 mm, E/F 32 x 76 mm
  - hardened inner tube: A 39.5 mm, B 49 mm, S 4.5 mm
  - outer tube: A 48 mm, B 57.5 mm, S 4 mm
  - max. static load 2300 Nm
  - max. continuous operating angle: 25°
  - max. temporary operating angle: 80°
  - applications: bale presses, slurry tankers, potato and beet machines, trailers etc.

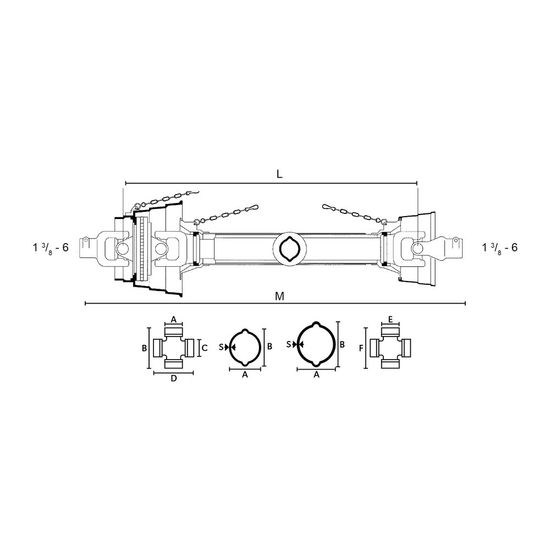

  See image for dimensions.
  Values determined with continuous load, 10° angle, and 1000 operating hours.
