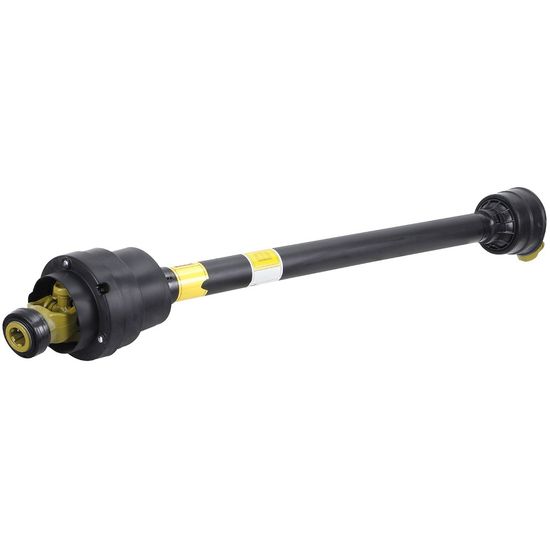

PTO Shaft Wwe2380 1.3/8-6 Wide Angle 1.3/8-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT804321

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: W40 (WWE2380)
  - splines: 6
  - power 540 rpm: 28 kW / 38 hp / 500 Nm
  - power 1000 rpm: 44 kW / 60 hp / 415 Nm
  - length: L 1210 mm, M min. 1428 mm, max.2100 mm
  - universal joint: A/B: 27 x 74.6 mm, C/D 23.8 x 95 mm, E/F 27 x 74.6 mm
  - hardened inner tube: A 34.5 mm, B 40 mm, S 4 mm
  - outer tube: A 41 mm, B 48 mm, S 3 mm
  - max. static load 1550 Nm
  - max. continuous operating angle: 25°
  - max. temporary operating angle: 80°
  - applications: bale presses, slurry tankers, manure spreaders, potato and beet machines etc.

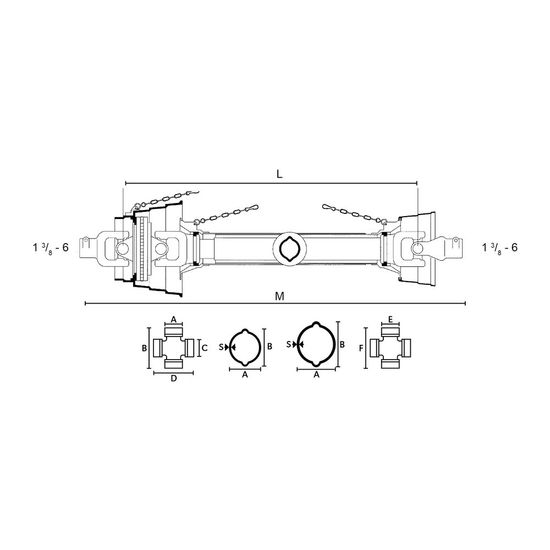

  See image for dimensions.
  Values determined with continuous load, 10° angle, and 1000 operating hours.
