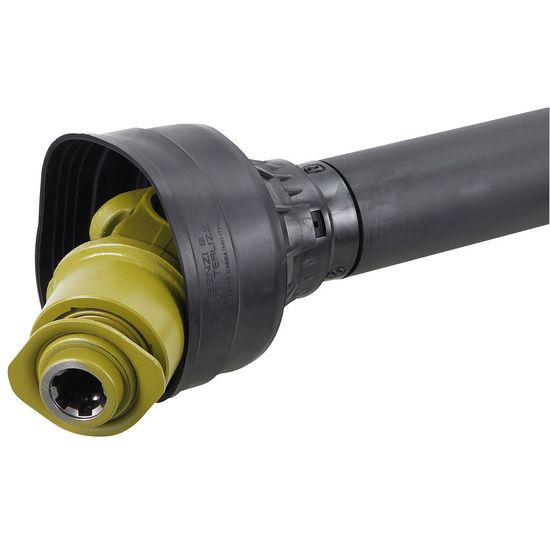

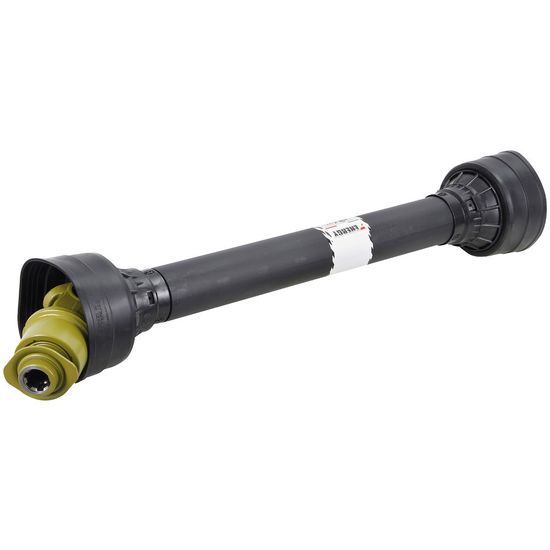

PTO Shaft W2400 1.3/8-6 Over-Running Clutch 1.3/8-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT811186

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: L05 (W2400), clutch
  - splines: 6
  - power 540 rpm: 39 kW / 53 hp / 695 Nm
  - power 1000 rpm: 61 kW / 83 hp / 580 Nm
  - length: L 860 mm, M min. 1129 mm, max. 1481 mm
  - cross: A/B: 32 x 76 mm
  - inner tube: A 39.5 mm, B 49, S 4.5 mm
  - outer tube: A 48 mm, B 57.5 mm, S 4 mm
  - max. static load 2300 Nm
  - applications: trailers, snow blowers, sprinklers, mills, circular saws, hammer mills, wood chippers, mowers, balers, milling machines, peat machines
  See image for dimensions.
  Values established with continuous load, 5° angle, and 1000 operating hours.
