PTO Shaft W2400 1.3/8-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT811086

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: L05 (W2400)
  - splines: 6
  - power 540 rpm: 39 kW / 53 hp / 695 Nm
  - power 1000 rpm: 61 kW / 83 hp / 580 Nm
  - length: L 860 mm, M min. 1084 mm, max. 1436 mm
  - cross size: A/B: 32 x 76 mm
  - inner tube: A 39.5 mm, B 49, S 4.5 mm
  - outer tube: A 48 mm, B 57.5 mm, S 4 mm
  - max. static load 2300 Nm
  - applications: trailers, snow blowers, sprinklers, mills, circular saws, choppers, wood chipper, hay tedders, bale presses, milling machines, peat machines

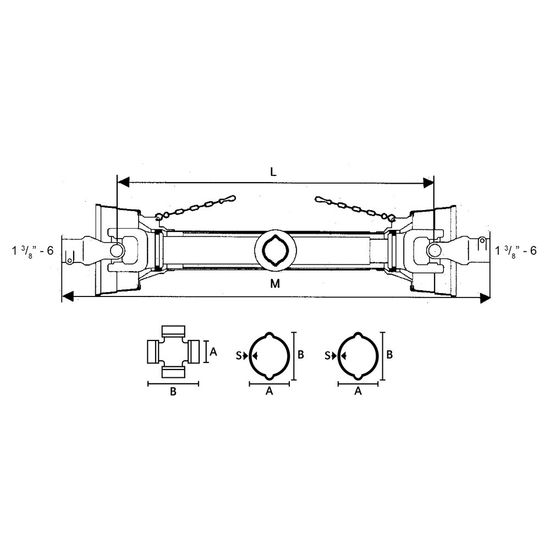

  See image for dimensions.
  Values established with continuous load, 5° angle and 1000 operating hours.
