PTO Shaft W2300 1.3/8-6 Over-Running Clutch 1.3/8-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT804186

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: L04 (W2300), release clutch
  - splines: 6
  - power 540 rpm: 28 kW / 38 hp / 500 Nm
  - power 1000 rpm: 44 kW / 60 hp / 415 Nm
  - length: L 860 mm, M min. 1125 mm, max. 1590 mm
  - universal joints: A/B: 27 x 74.5 mm
  - inner tube: A 34.5 mm, B 40, S 4 mm
  - outer tube: A 41 mm, B 48 mm, S 3 mm
  - max. static load 1550 Nm
  - applications: rakes, turners, mowers, small sprinklers, manure spreaders, pickers, mowers, small balers, circular saws, universal trailers, potato and beet machines, circular saw and splitter machines

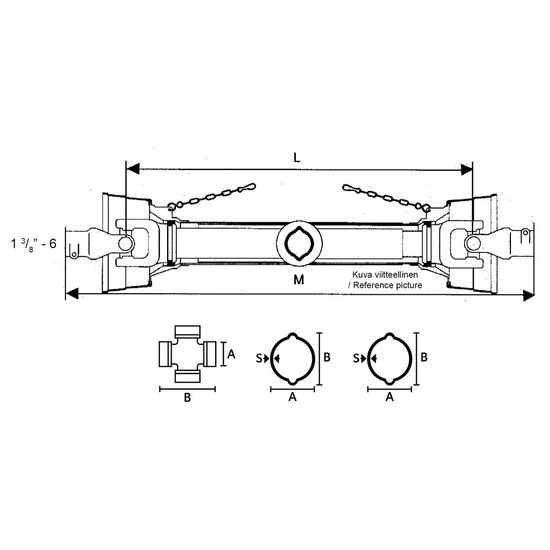

  See image for measurements.
  Values determined with continuous load, 5° angle, and 1000 operating hours.
