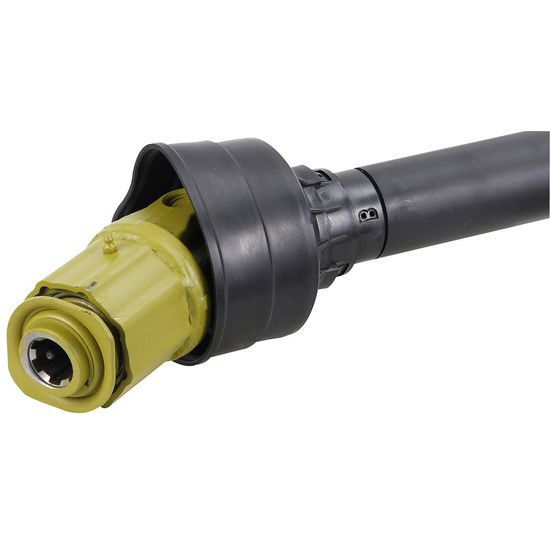

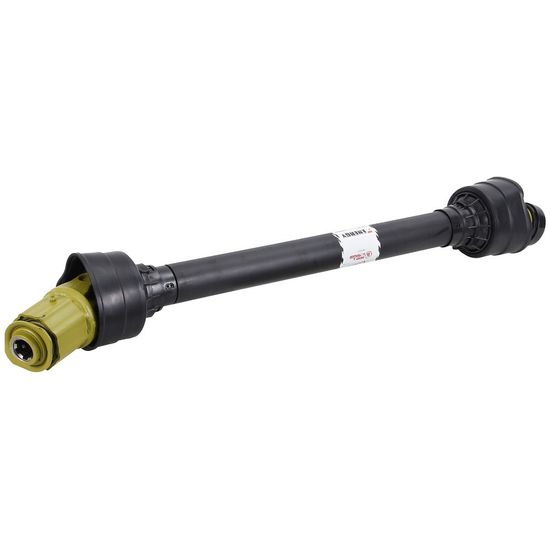

PTO Shaft W2300 1.3/8-6 Clutch 1.3/8-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT804286

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: L04 (W2300), overload breaker 900 Nm
  - splines: 6
  - power 540 rpm: 28 kW / 38 hp / 500 Nm
  - power 1000 rpm: 44 kW / 60 hp / 415 Nm
  - length: L 860 mm, M min. 1125 mm, max. 1590 mm
  - cross: A/B: 27 x 74.5 mm
  - inner tube: A 34.5 mm, B 40, S 4 mm
  - outer tube: A 41 mm, B 48 mm, S 3 mm
  - applications: rakes, hay turners, dung spreaders, utility trailers, hay loaders, small sprinklers, dung spreaders, mowers, small balers, circular saws, utility trailers, potato and beet machines, circular saws and log splitters

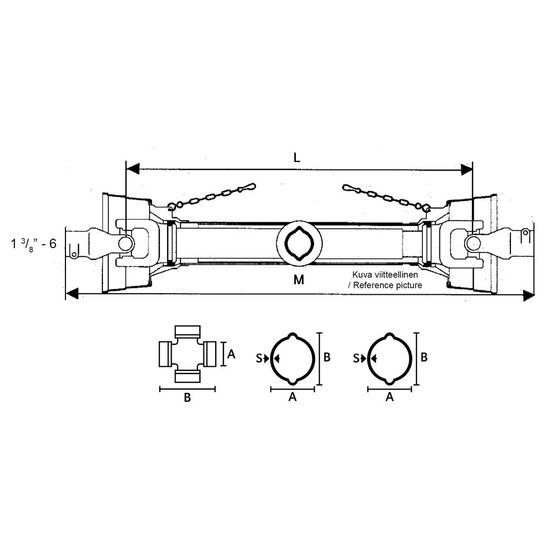

  See image for dimensions.
  Values established with continuous load, 5° angle, and 1000 operating hours.
