PTO Shaft W2100 1.3/8-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT800186

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: L01 (W2100)
  - splines: 6
  - power 540 rpm: 12 kW / 16 hp / 210 Nm
  - power 1000 rpm: 18 kW / 24 hp / 175 Nm
  - length: L 860 mm, M min. 1050 mm, max. 1420 mm
  - cross size: A/B: 22 x 55 mm
  - inner tube: A 23.5 mm, B 31 mm, S 3.6 mm
  - outer tube: A 30 mm, B 39 mm, S 2.8 mm
  - max. static load 850 Nm
  - applications: light rakes, hay tedders, plows, sprayers, concrete mixers, potato planters, small circular saws etc.

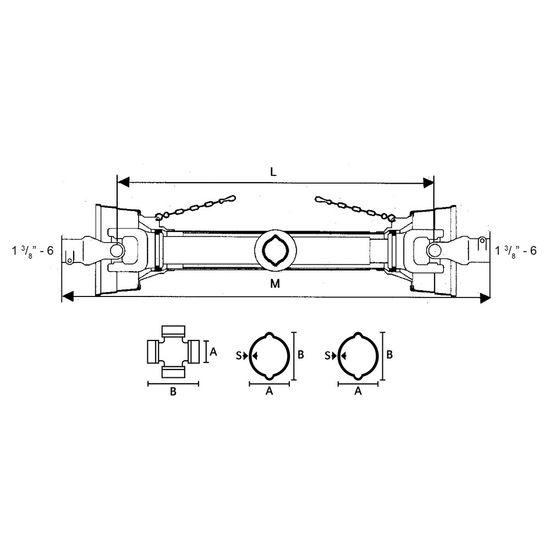

  See image for dimensions.
  Values established with continuous load, 5° angle and 1000 operating hours.
