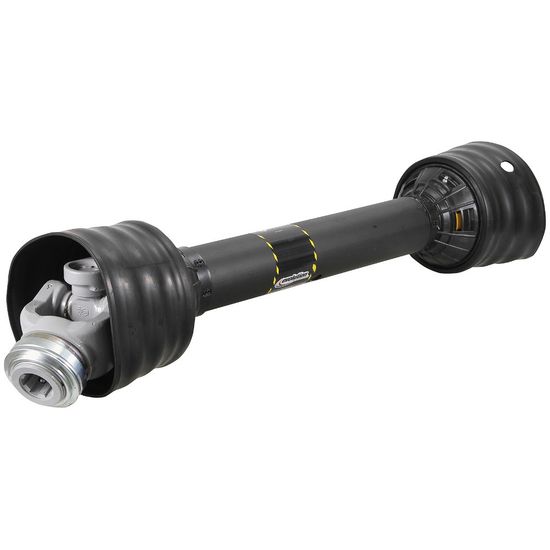

PTO Shaft B110 1.3/4-6 Evo

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDT829086E

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: V10 (B110)

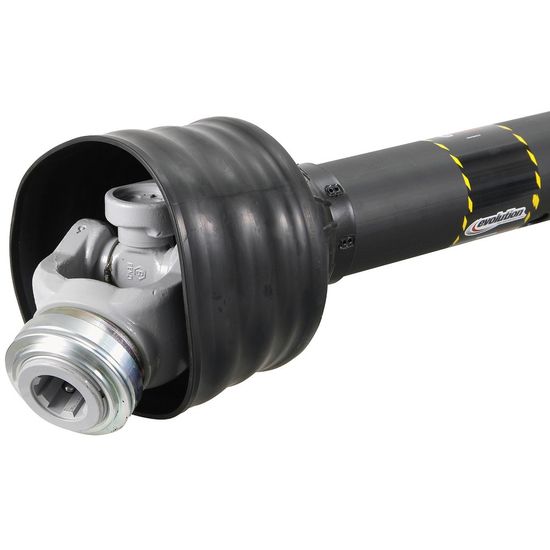

  - fork tractor side: 1 3/4"-6Z locking collar
  - fork implement side: 1 3/4"-6Z pin lock
  - power 540 rpm: 92 kW / 125 hp / 1625 Nm
  - power 1000 rpm: 142 kW / 193 hp / 1360 Nm
  - max. static load on tubes: 6000 Nm
  - length: L 860 mm, M min. 1145 mm, M max. 1575 mm
  - universal joint: A/B: 42 x 104 mm
  - inner tube: star A 61 mm, B 47 mm, S 4.5 mm
  - outer tube: star A 71.5 mm, B 57.5 mm, S 5 mm
  - service interval up to 50 hours
  - applications: trailers, snow blowers, grinders, wood chippers, peat machines etc.

  Note! must be lubricated before use.
