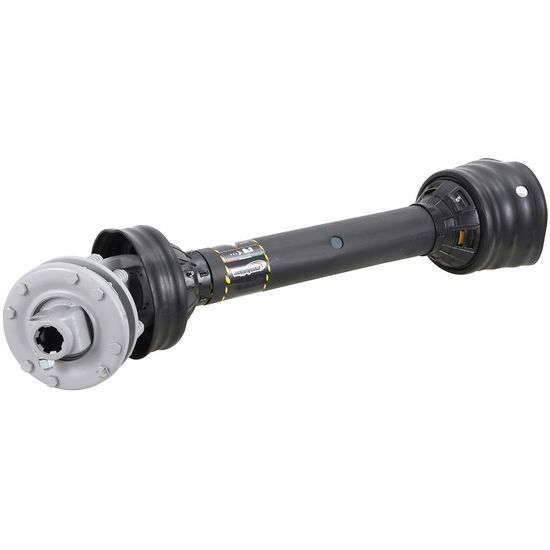

PTO Shaft B110 1.3/4-6 Clutch 1.3/4-6 Evo

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT829186E

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: V10

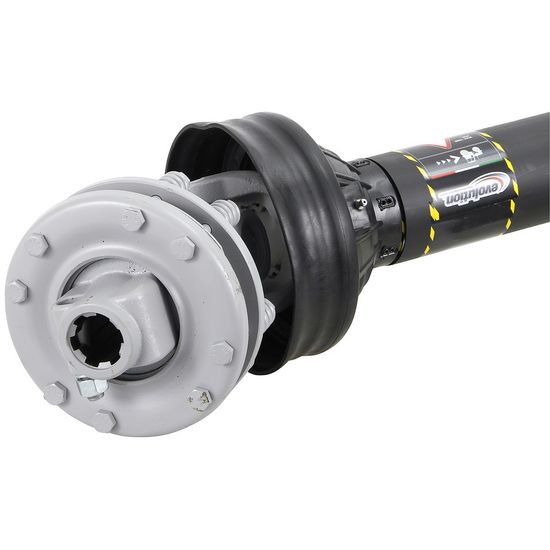

  - disc clutch FF4 2000 Nm
  - fork tractor side: 1.3/4"-6Z locking collar
  - fork work machine side: 1.3/4"-6Z taper lock
  - power 540 rpm: 106 kW / 145 hp / 1890 Nm
  - power 1000 rpm: 170 kW / 230 hp / 1630 Nm
  - length: L 860 mm, M min. 1190 mm, M max. 1530 mm
  - universal joint: A/B: 42 x 104 mm
  - inner tube: star A 61 mm, B 47 mm, S 4.5 mm
  - outer tube: star A 71.5 mm, B 57.5 mm, S 5 mm
  - applications: trailers, snow blowers, milling cutters, wood chippers, peat bog machines etc.

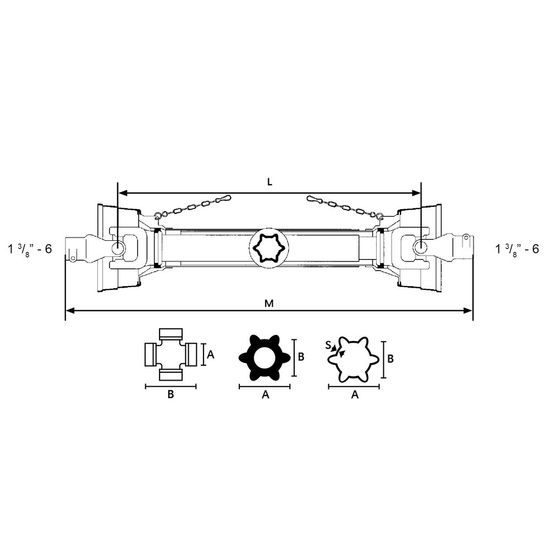

  - see image for dimensions
  - values established under continuous load, 5° angle, and 1000 hours of use.
