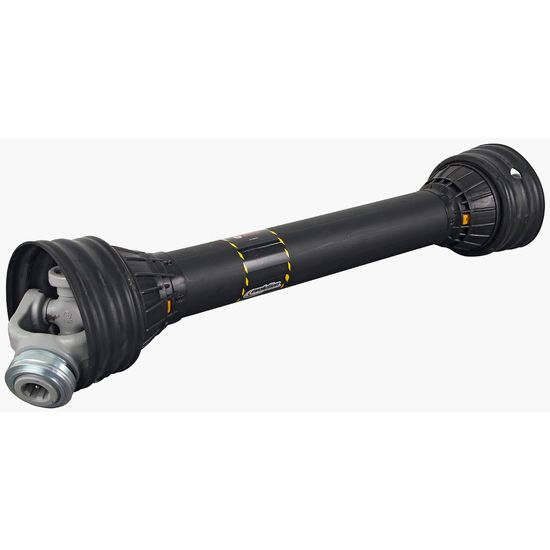

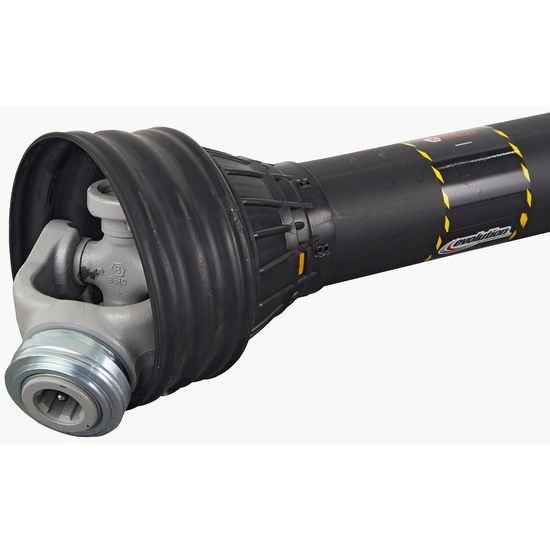

PTO Shaft B108 1.3/8-6 Shear Bolt 1.3/8-6 Evo

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT827686E

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: V08
  - bolt coupling 3500 Nm M12x65 DIN931 8.8
  - fork tractor side: 1.3/8"-6Z locking collar
  - fork equipment side: 1.3/8"-6Z pin lock
  - power 540 rpm: 77 kW / 105 hp / 1365 Nm
  - power 1000 rpm: 119 kW / 162 hp / 1142 Nm
  - length: L 860 mm, M min. 1110 mm, M max. 1520 mm
  - universal joints: A/B: 35 x 106.5 mm
  - inner profile: star A 51 mm, B 37 mm
  - outer tube: star A 61 mm, B 47 mm, S 4.5 mm
  - max. static load: 2250 Nm
  - applications: trailers, snow blowers, grinders, wood chippers, peat machines etc.

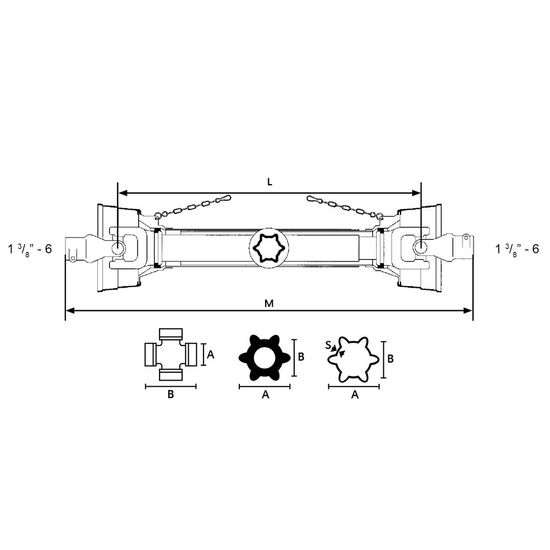

  - see image for measurements
  - values determined with continuous load, 5° angle, and 1000 operating hours.
