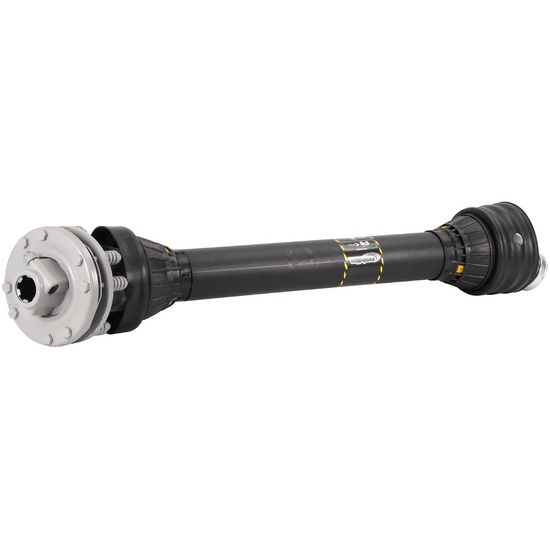

PTO Shaft B108 1.3/8-6 Clutch Ff4 1.3/4-6 Evo

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT827386E

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: V08

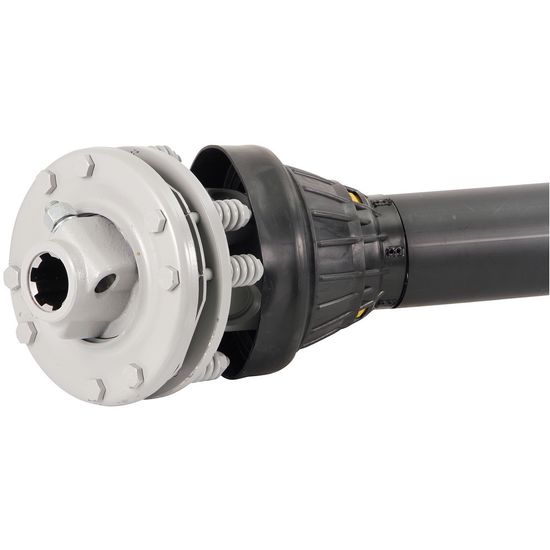

  - disc clutch FF4 2000 Nm
  - fork tractor side: 1.3/8"-6Z locking collar
  - fork work machine side: 1.3/4"-6Z taper lock
  - power 540 rpm: 77 kW / 105 hp / 1365 Nm
  - power 1000 rpm: 119 kW / 162 hp / 1142 Nm
  - length: L 860 mm, M min. 1150 mm, M max. 1540 mm
  - universal joint: A/B: 35 x 106.5 mm
  - inner profile: star A 51 mm, B 37 mm
  - outer tube: star A 61 mm, B 47 mm, S 4.5 mm
  - applications: trailers, snow blowers, milling cutters, wood chippers, peat bog machines etc.

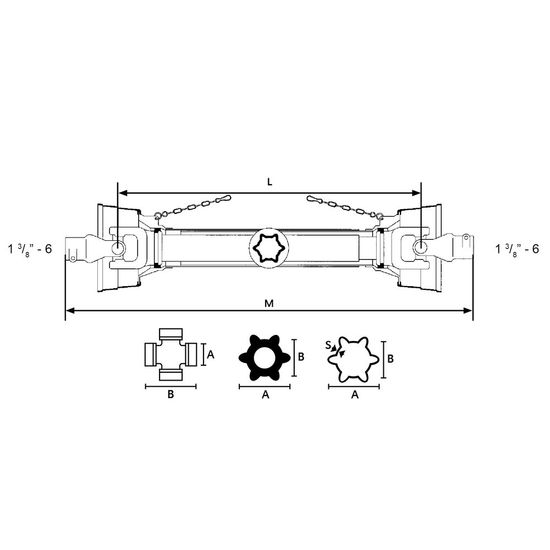

  - see image for dimensions
  - values established under continuous load, 5° angle, and 1000 hours of use.
