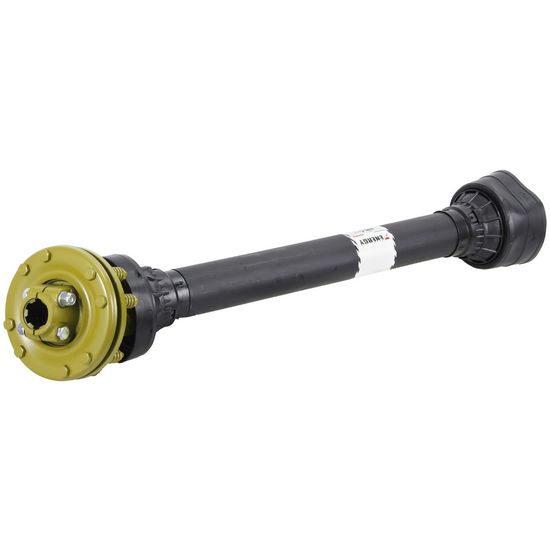

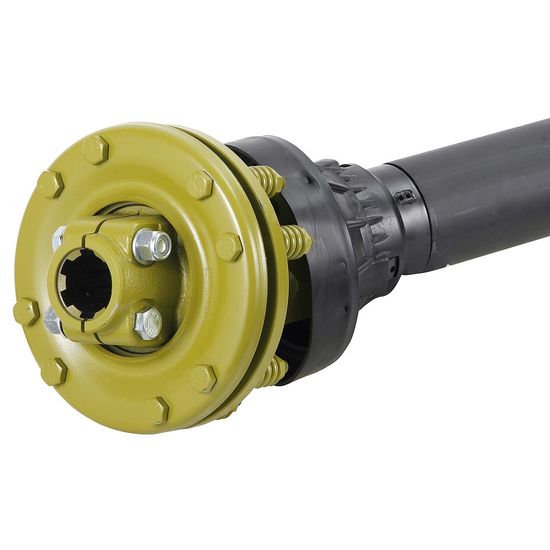

PTO Shaft B106 1.3/8-6 Clutch Ff2 1.3/4-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT825686

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: B06 (106), bolt locking 1250 Nm
  - splines: 6
  - power 540 rpm: 47 kW / 64 hp / 830 Nm
  - power 1000 rpm: 74 kW / 100 hp / 710 Nm
  - length: L 860 mm, M min. 1130 mm, max. 1540 mm
  - universal joint: A/B: 30.2 x 92 mm
  - inner tube: A 45 mm, S 4 mm
  - outer tube: A 54 mm, S 4 mm
  - applications: trailers, snow blowers, sprinklers, mills, circular saws, wood chippers, mowers, balers, milling cutters, peat bog machines

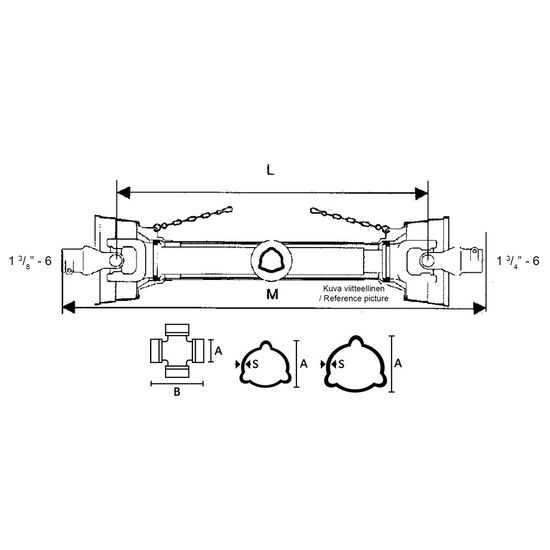

  - see image for dimensions
  - values established under continuous load, 5° angle, and 1000 hours of use

  Note! Must be lubricated before use.
