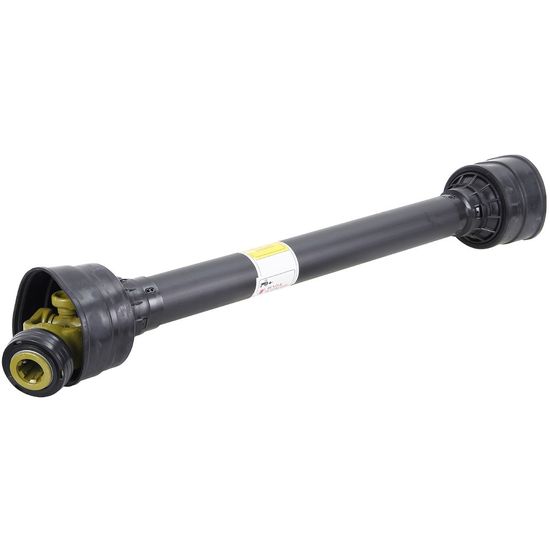

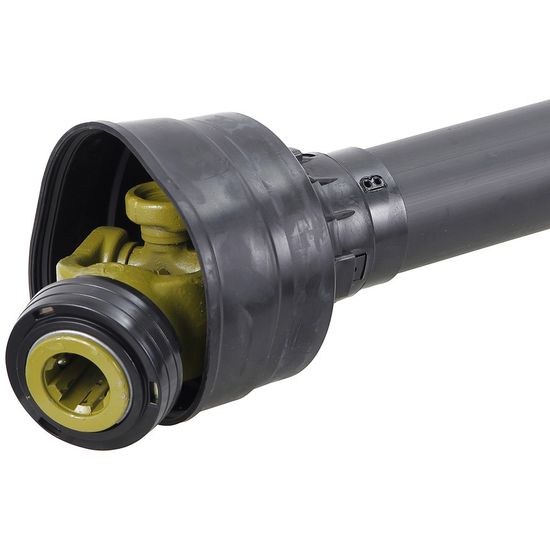

PTO Shaft B104 1.3/8-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT823086

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: B04 (104)
  - splines: 6
  - power 540 rpm: 26 kW / 35 hp / 460 Nm
  - power 1000 rpm: 40 kW / 55 hp / 380 Nm
  - length: L 860 mm, M min. 1075 mm, max. 1525 mm
  - cross size: A/B: 27.6 x 74 mm
  - inner tube: A 36 mm, S 4.5 mm
  - outer tube: A 43.5 mm, S 3.4 mm
  - max. static load 780 Nm
  - applications: rakes, plows, harrows, hay tedders, small sprinklers, utility trailers, harvesters, manure spreaders, bale presses, potato and beet machines, harvesters, circular saws and log splitters etc.

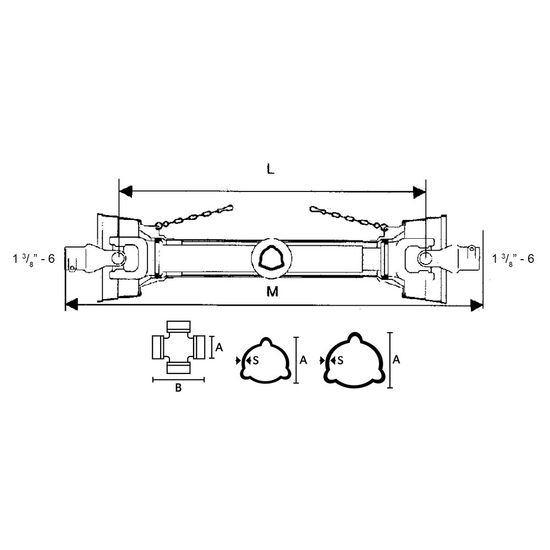

  - see image for dimensions
  - values established with continuous load, 5° angle and 1000 operating hours

  NOTE! must be lubricated before use.
