PTO Shaft B102 Long 1.3/8-6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT821041

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: B02 (102)
  - splines: 6
  - power 540 rpm: 15 kW / 21 hp / 270 Nm
  - power 1000 rpm: 23 kW / 31 hp / 220 Nm
  - length: L 1410 mm, M min. 1604 mm, max.2040 mm
  - cross size: A/B: 23.8 x 61.3 mm
  - inner tube: A 29 mm, S 4 mm
  - outer tube: A 36 mm, S 3.2 mm
  - max. static load 450 Nm
  - applications: light rakes, hay tedders, plows, sprayers, concrete mixers, potato planters, small circular saws etc.

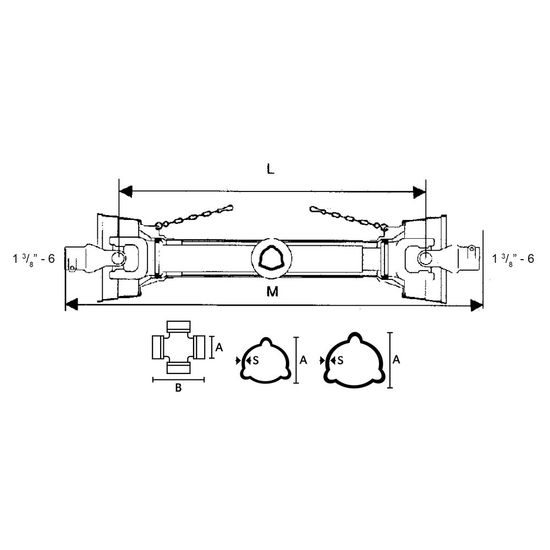

  - see image for dimensions
  - values established with continuous load, 5° angle and 1000 operating hours

  NOTE! must be lubricated before use.
