PTO Shaft B101 1.3/8-6 - type B01 splines: 6

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT800176

  ManufacturerBENZI DI TERLIZZI

  CharacteristicsB01, inner forks welded
  A good all-rounder

  - type: B01 (101), inner forks welded)
  - splines: 6
  - power 540 rpm: 12 kW / 16 hp / 210 Nm
  - power 1000 rpm: 18 kW / 25 hp / 172 Nm
  - length: L 760 mm, M min945 mm, max. 1415 mm
  - universal joint: A/B: 22 x 54 mm
  - inner tube: A 26.5 mm, S 3.5 mm
  - outer tube: A 32.5 mm, S 2.6 mm
  - max. static load 320 Nm
  - applications: light harrows, mowers, rakes, sprayers, cement mixers, potato equipment, small circular saws, etc.

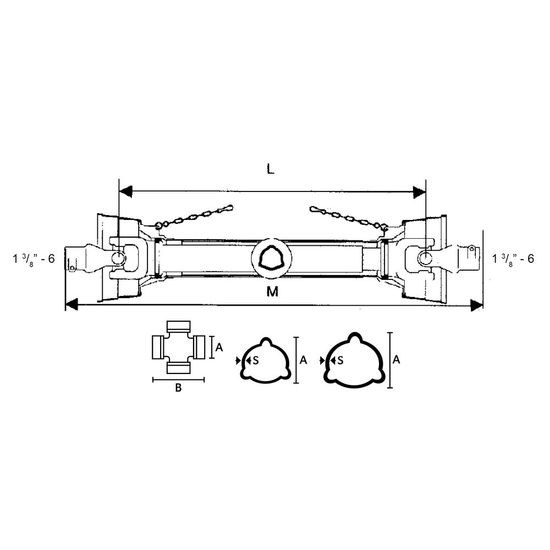

  See image for dimensions.
  Values determined with continuous load, 5° angle, and 1000 operating hours.
