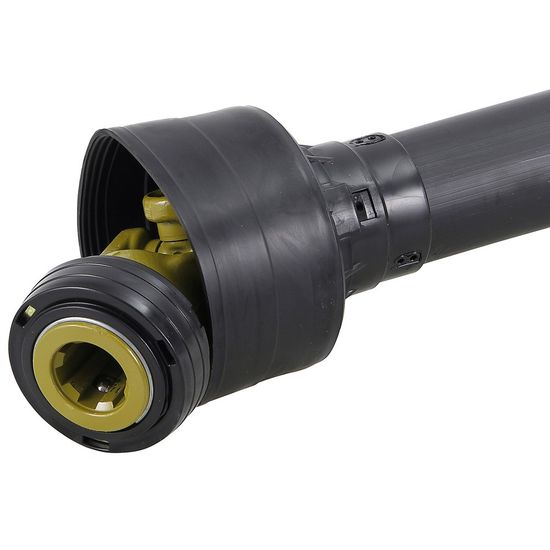

PTO Shaft B101 1.3/8-6 - type B01

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT820186

  ManufacturerBENZI DI TERLIZZI

  Characteristics

  - type: B01 (101)
  - splines: 6
  - power 540 rpm: 12 kW / 16 hp / 210 Nm
  - power 1000 rpm: 18 kW / 25 hp / 172 Nm
  - length: L 860 mm, M min. 1045 mm, max. 1515 mm
  - cross size: A/B: 22 x 55 mm
  - inner tube: A 26.5 mm, S 3.5 mm
  - outer tube: A 32.5 mm, S 2.6 mm
  - max. static load 320 Nm
  - applications: light rakes, hay tedders, plows, sprayers, concrete mixers, potato planters, small circular saws etc.

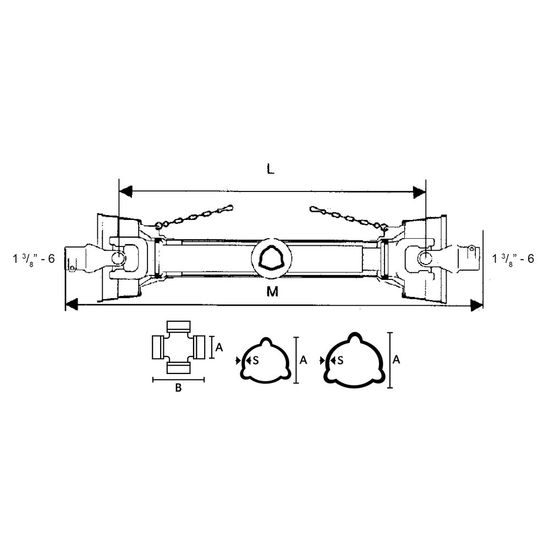

  - see image for dimensions
  - values established with continuous load, 5° angle and 1000 operating hours

  NOTE! must be lubricated before use.
