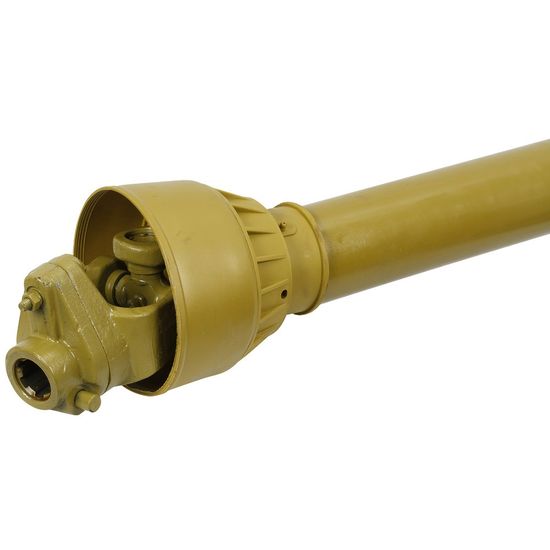

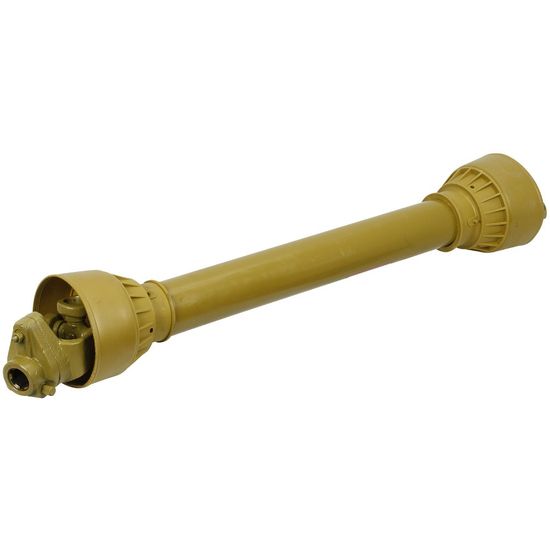

PTO Shaft 06 1.3/8-6 Split pin

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDT905186

  ManufacturerAGRILIFE

  CharacteristicsAlternative product: T825486

  - type: 06
  - bolt coupling 2100 Nm
  - fork tractor side: 1.3/8"-6 splines locking pin
  - fork implement side: 1.3/8"-6 splines locking pin
  - power 540 rpm: 40 kW / 55 hp / 700 Nm
  - power 1000 rpm: 61 kW / 83 hp / 580 Nm
  - length: L 860 mm, M min. 1115 mm, M max. 1439 mm
  - cross journals: A/B: 30.2 x 92 mm
  - inner tube: triangular A 44.7 mm, S 4 mm
  - outer tube: triangular A 53.6 mm, S 3.8 mm
  - applications: trailers, snow blowers, milling cutters, wood chippers, peat machines, etc.

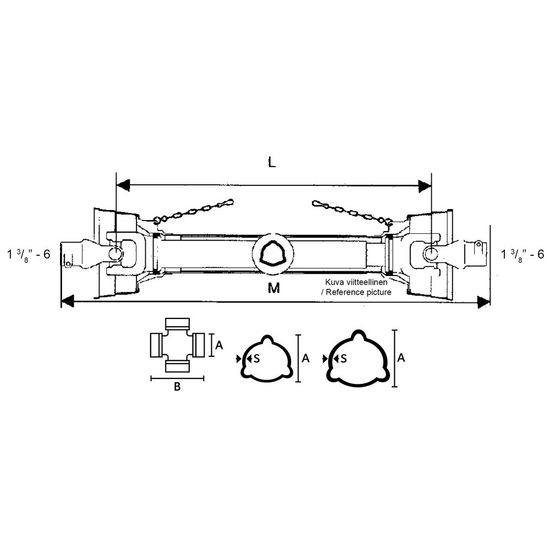

  - see image for dimensions
  - values determined with continuous load, 5° angle, and 1000 operating hours
