PTO Shaft 01 1.3/8-6

Qty:

Add to cart

Add to cart

• Info
• Stock status

  Product IDT900086

  ManufacturerAGRILIFE

  Characteristics

  - type: 01
  - fork tractor side: 1.3/8"-6 splines locking pin
  - fork implement side: 1.3/8"-6 splines locking pin
  - power 540 rpm: 12 kW / 16 hp / 210 Nm
  - power 1000 rpm: 18 kW / 24 hp / 170 Nm
  - length: L 860 mm, M min. 1046 mm, M max. 1396 mm
  - cross journals: A/B: 22 x 54 mm
  - inner tube: triangular A 26.6 mm, S 3.5 mm
  - outer tube: triangular A 32.4 mm, S 2.5 mm
  - applications: light rakes, mowers, hay turners, sprayers, concrete mixers, potato harvesters, small circular saws, etc.

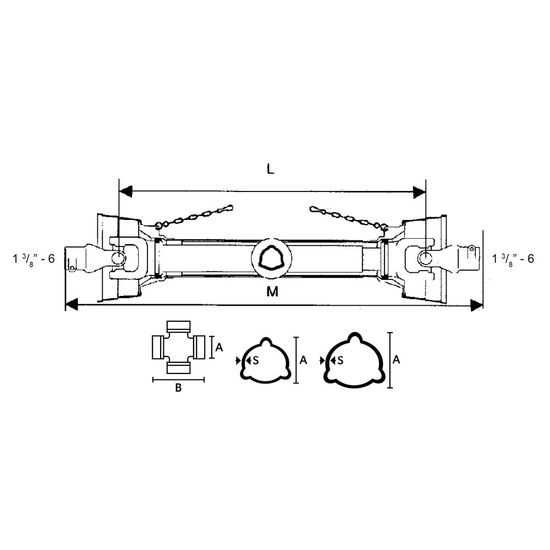

  - see image for dimensions
  - values determined with continuous load, 5° angle, and 1000 operating hours
