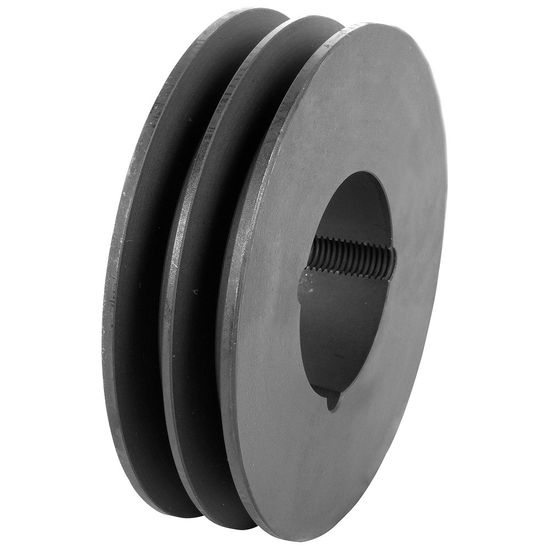

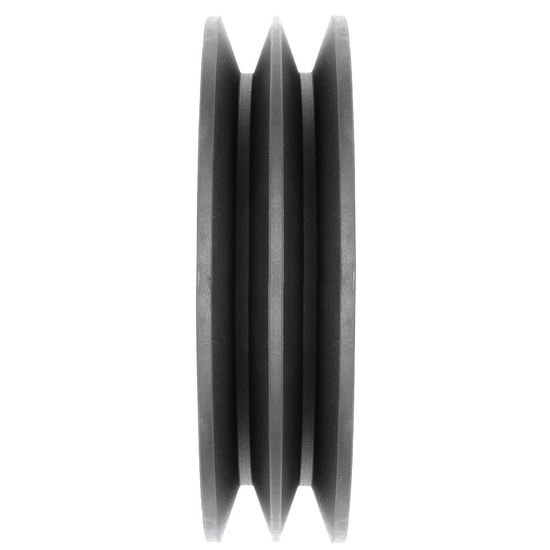

V-belt pulley B180/2/2517

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSPB180-2-2517

  Manufacturer

  Characteristics- for SPB-B-5V-wedge profiles (17 mm)
  - suitable bushing 2517
  - number of straps 2

  - cast iron
  - attached with taper bushings
  - for SPB-B-5V key profiles (17 mm)
  - manufactured according to DIN2211 (ISO4183) standard
  - max. peripheral speed 30 m/s
  - balanced according to class G16
  - bushings with keyways and screws according to UNI and DIN standards, withstand the required torque
  - during installation, the threaded half-holes on the wheel align with the smooth half-holes on the bushing
  - keyways: 2
  - outer diameter: 187.0 mm
  - bushing: 2517
