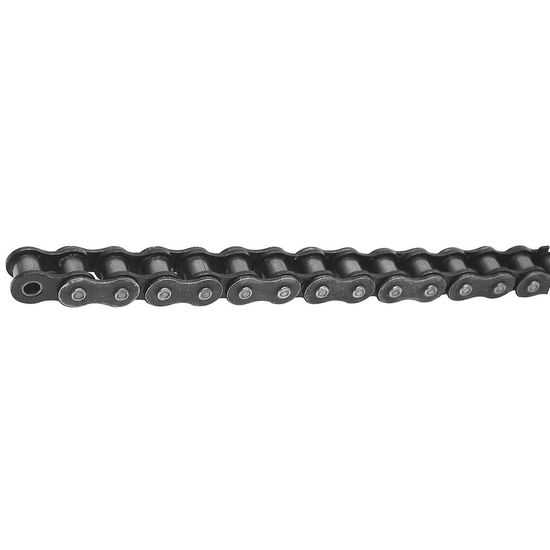

Roller chain 1/2 Din8187 5 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKK08B1

  Manufacturer

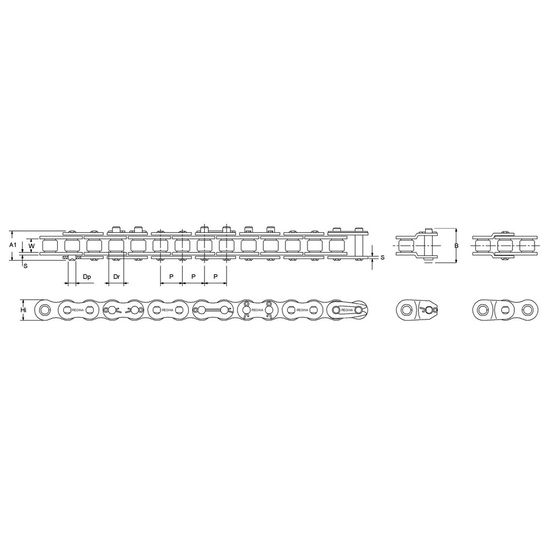

  Characteristics- Length: 5 meters
  - division 1/2 inch

  - Length: 5 meters
  - Pitch: 1/2"
  - DR roller Ø mm: 8.51
  - W inner dimension min. mm: 7.75
  - HI height max. mm: 11.81
  - S material thickness mm: 1.63 / 1.40
  - DP pin thickness max. mm: 4.45
  - A1 width from rivet end mm: 16.50
  - B extension width mm: 24
  - contact area mm²: 50
  - breaking load N: 120
  - min. breaking strength kN: 17.80
  - average breaking strength kN: 18.60
  - weight kg/m: 0.69
