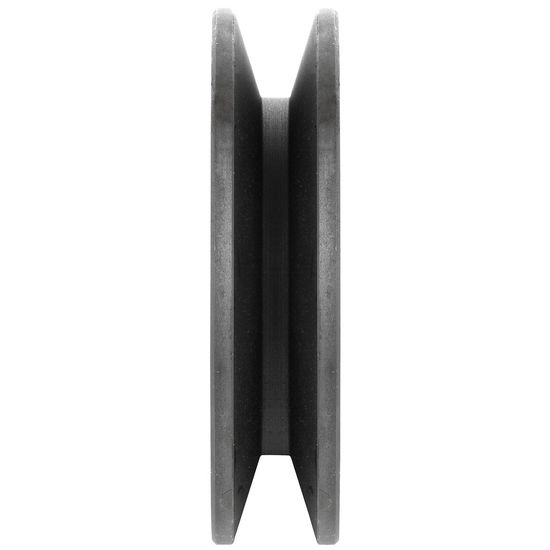

V-belt pulley B150/1/1610

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSPB150-1-1610

  Manufacturer

  Characteristics- for SPB-B-5V-wedge profiles (17 mm)
  - suitable bushing 1610
  - number of straps 1

  - cast iron
  - fastened with taper bushes
  - for SPB-B-5V key profiles (17 mm)
  - manufactured according to DIN2211 (ISO4183) standard
  - max. peripheral speed 30 m/s
  - balanced according to class G16
  - bushes with keyways and screws according to UNI and DIN standards, withstand the required torque
  - during installation, the threaded half-hubs on the wheel face the smooth half-hub of the bushing
  - keyways: 1
  - outer diameter: 157.0 mm
  - bushing: 1610
