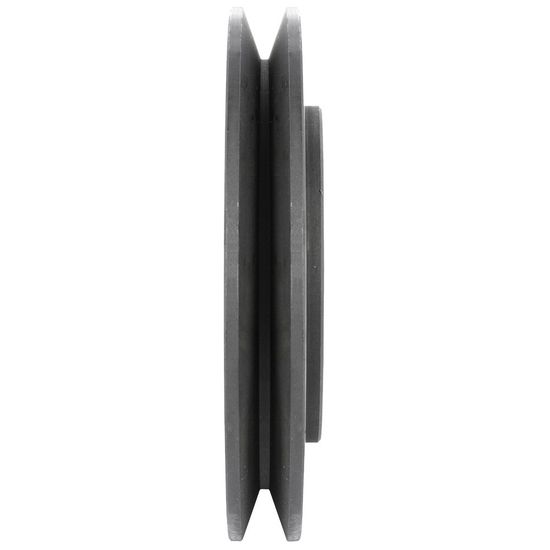

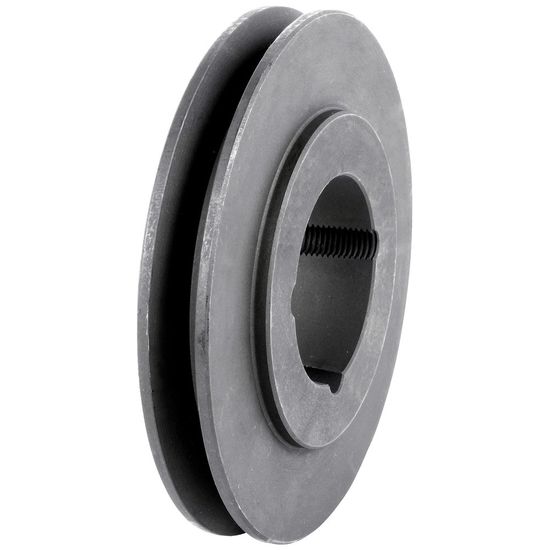

V-Belt Pulley A75/1/1108

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSPA75-1-1108

  Manufacturer

  Characteristics- for SPA-A -wedge profiles (13 mm)
  - suitable sleeve 1108
  - number of straps 1

  - cast iron
  - fastened with taper bushings
  - for SPA-A key profiles (13 mm)
  - manufactured according to DIN2211 (ISO4183) standard
  - max. peripheral speed 30 m/s
  - balanced according to class G16
  - bushings with keyways and screws according to UNI and DIN standards, withstand the required torque
  - during installation, the threaded half-holes on the wheel align with the smooth half-holes of the bushing
  - keyways: 1
  - outer diameter: 80.5 mm
  - bushing: 1108
