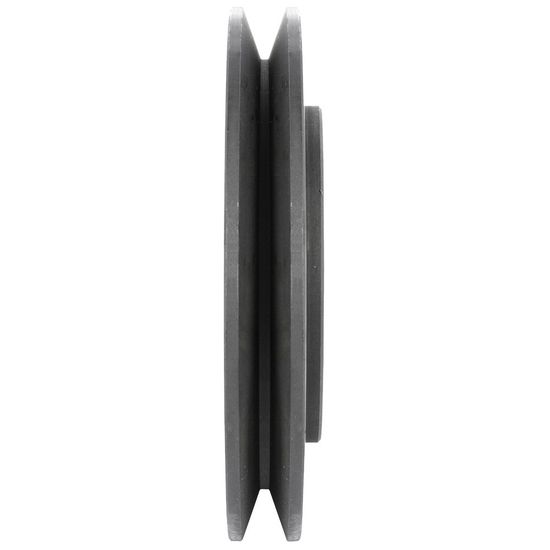

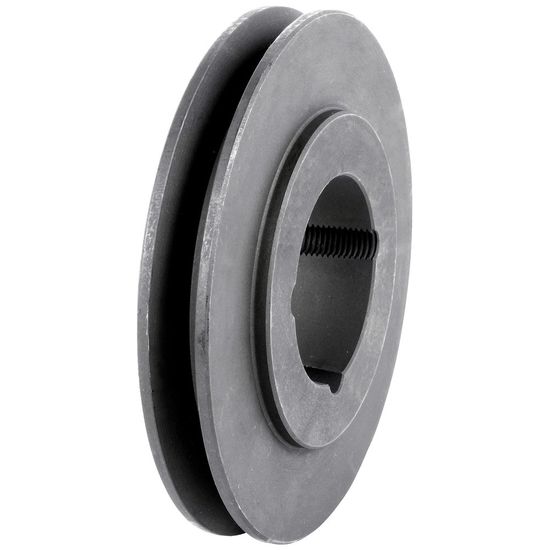

V-Belt Pulley A170/1/1610

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDSPA170-1-1610

  Manufacturer

  Characteristics- for SPA-A wedge profiles (13 mm)
  - suitable socket 1610
  - number of belts 1

  - cast iron
  - fastened with taper bushes
  - for SPA-A key profiles (13 mm)
  - manufactured according to DIN2211 (ISO4183) standard
  - max. peripheral speed 30 m/s
  - balanced according to class G16
  - bushes with keyways and screws according to UNI and DIN standards, withstand required torque
  - during installation, the threaded half-holes on the wheel fit the smooth half-holes of the bushing
  - keyway: 1
  - outer diameter: 175.5 mm
  - bushing: 1610
