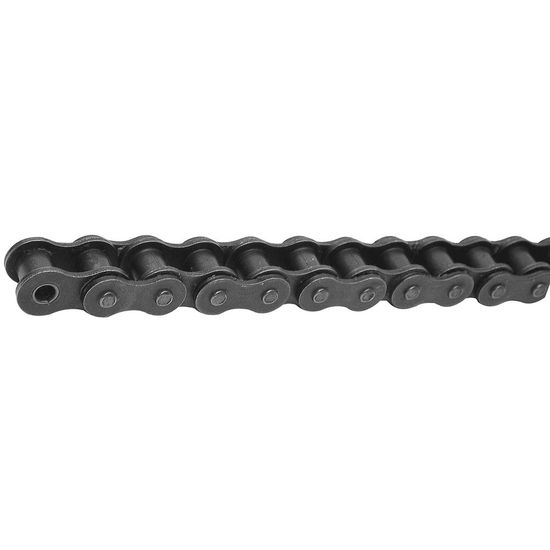

Roller chain Asa 3/4 5 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKR12A1

  ManufacturerREGINA

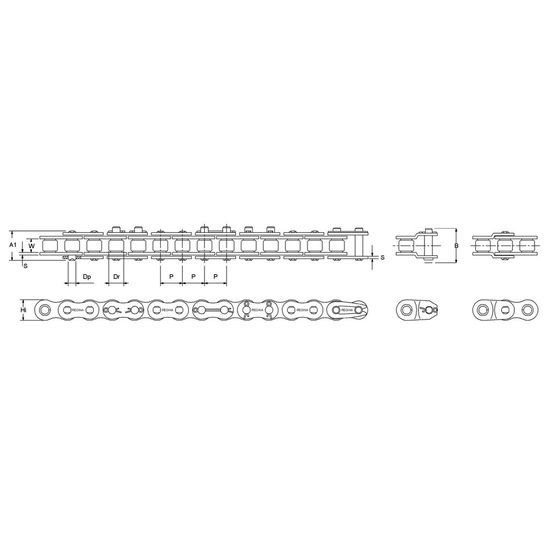

  Characteristics- Length: 5 meters
  - division 3/4 inch

  - Length: 5 meters
  - 1-row
  - P-pitch: 3/4"
  - Diameter of DR roller mm: 11.91
  - Minimum W inner dimension mm: 12.57
  - Maximum HI height mm: 18.08
  - Material thickness S mm: 2.30
  - TP cross pitch:
  - Maximum DP pin thickness mm: 5.96
  - A1 width from rivet end mm: 25.80
  - B extension width mm: 33.00
  - Bearing area mm²: 105
  - Breaking load N: 280
  - Min. breaking strength kN: 31.10
  - Average breaking strength kN: 37.25
  - Weight kg/m: 1.43
