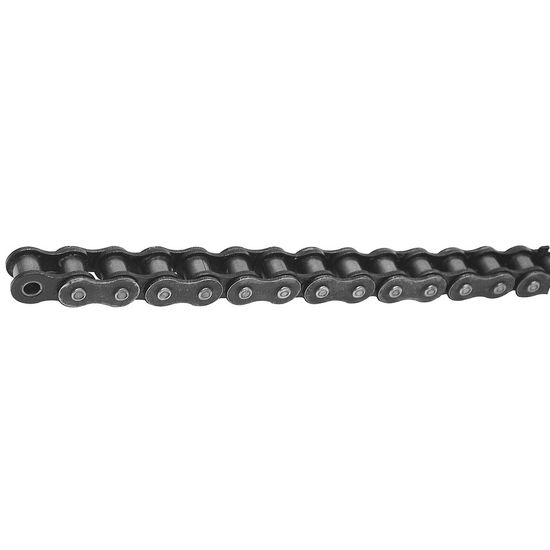

Roller chain 3/4 Din8187, Length 5 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKK12B1

  Manufacturer

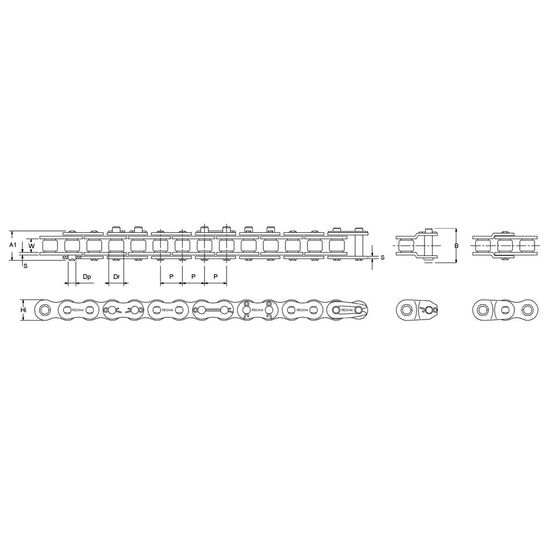

  Characteristics- Length: 5 meters
  - division 3/4 inch

  - Length: 5 meters
  - Pitch: 3/4"
  - DR roller Ø mm: 12.07
  - W inner dimension min. mm: 11.68
  - HI height max. mm: 16.13
  - S material thickness mm: 1.85 / 1.70
  - DP pin thickness max. mm: 5.72
  - A1 width from rivet end mm: 22.50
  - B extension width mm: 30
  - contact area mm²: 89
  - breaking load N: 280
  - min. breaking strength kN: 28.90
  - average breaking strength kN: 33.00
  - weight kg/m: 1.21
