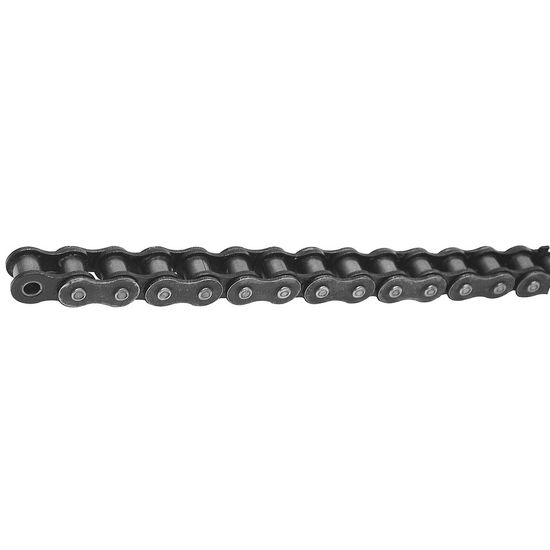

Roller chain 1.1/2 Din8187 Euro 5 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKR24B1

  ManufacturerREGINA

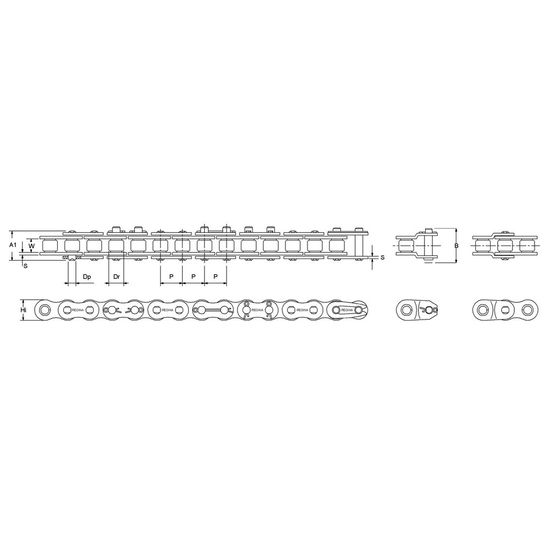

  Characteristics- Pitch 1.1/2 inches

  - P-division: 1 1/2"
  - DR roller Ø mm: 25.40
  - W inner dimension min. mm: 25.40
  - HI height max. mm: 33.40
  - S material thickness mm: 6.15 / 4.60
  - DP pin thickness max. mm: 14.63
  - A1 width from rivet end mm: 53.40
  - B extension width mm: 65
  - bearing area mm²: 550
  - breaking load N: 1110
  - min. breaking strength kN: 160.00
  - average breaking strength kN: 166.80
  - weight kg/m: 6.62
  - sold as 5 meters - if you need 10 meters or more you choose 2 pieces etc.
