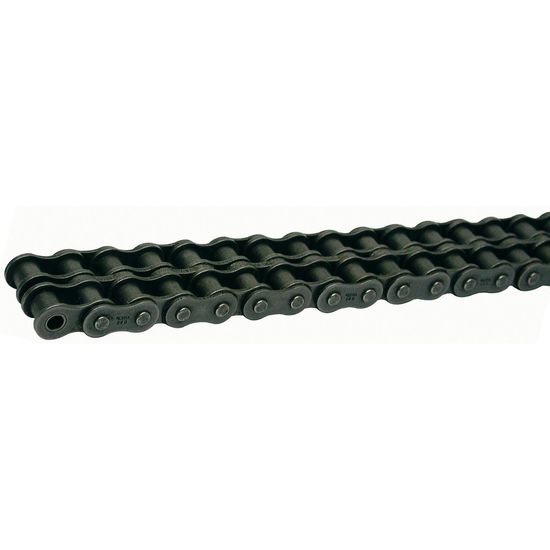

Roller chain 1 Din8187 5 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKK16B2

  Manufacturer

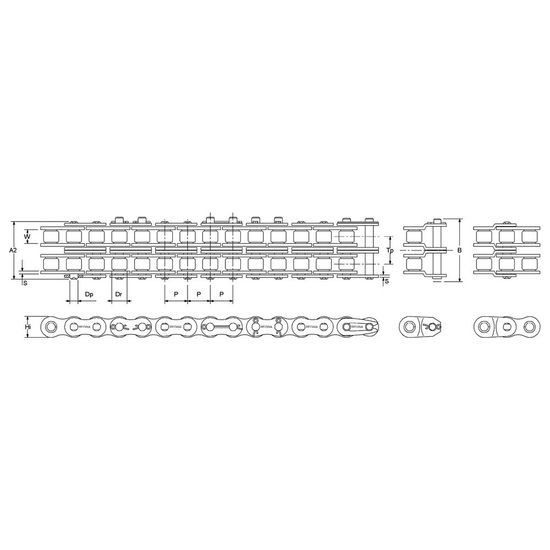

  Characteristics- Length: 5 meters
  - division 1 inch

  - Length: 5 meters
  - Pitch: 1"
  - DR roller Ø mm: 15.88
  - W internal dimension min. mm: 17.02
  - HI max. height mm: 21.08
  - S material thickness mm: 3.80 / 3.00
  - TP pitch: 31.88
  - DP pin thickness max. mm: 8.28
  - A2 width from the end of the rivet mm: 68.0
  - B extension width mm: 78.8
  - bearing area mm²: 420
  - breaking load N: 1000
  - min. breaking strength kN: 106.0
  - average breaking strength kN: 127.50
  - weight kg/m: 5.21
