Roller chain 1/2 08B-2 Din8187 5 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKK08B2

  Manufacturer

  Characteristics- Length: 5 meters
  - division 1/2 inch

  - Length: 5 meters

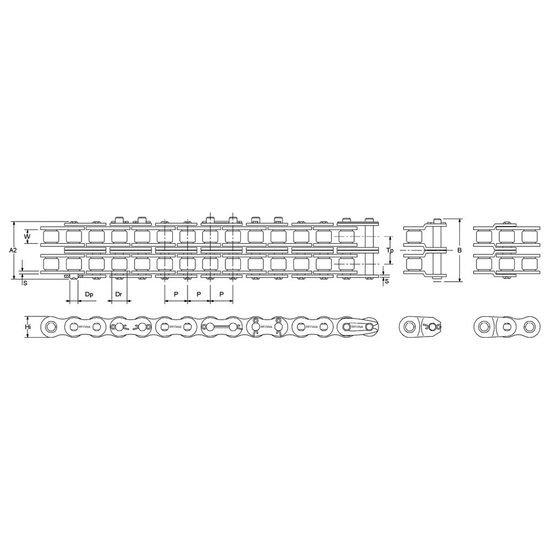

  - P-pitch: 1/2"
  - Diameter of DR roller mm: 8.51
  - Minimum W inner dimension mm: 7.75
  - Maximum HI height mm: 11.81
  - Material thickness S mm: 1.63 / 1.40
  - TP cross pitch: 13.92
  - Maximum DP pin thickness mm: 4.45
  - A2 width from rivet end mm: 30.4
  - B extension width mm: 38.2
  - Bearing area mm²: 100
  - Breaking load N: 250
  - Min. breaking strength kN: 31.1
  - Average breaking strength kN: 35.10
  - Weight kg/m: 1.36
