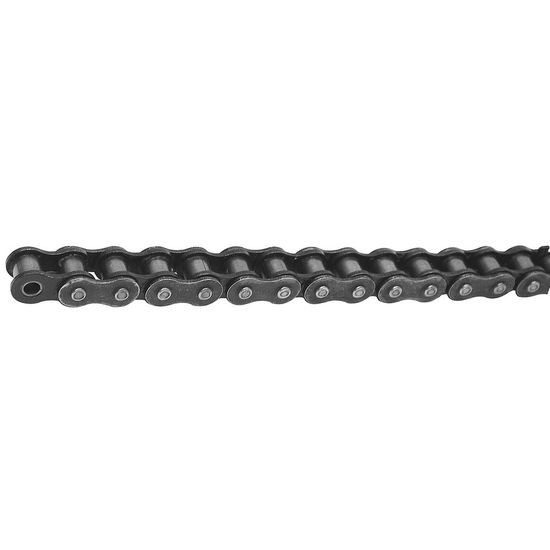

Roller chain 1 1/4 Din8187 5 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKK20B1

  Manufacturer

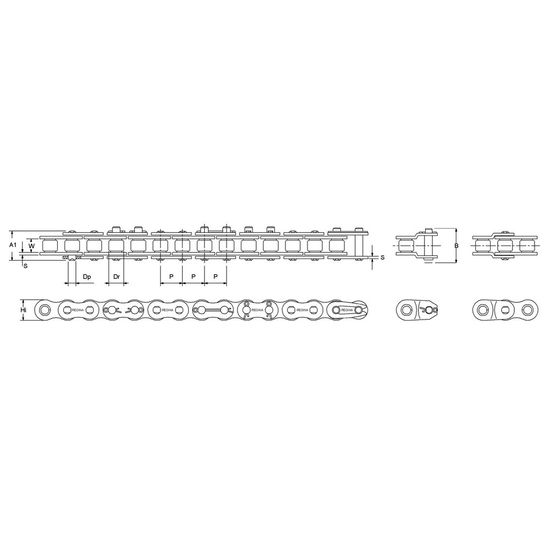

  Characteristics- Length: 5 meters
  - division 1 inch

  - Length: 5 meters
  - Pitch: 1 1/4"
  - DR roller Ø mm: 19.05
  - W inner dimensions min. mm: 19.56
  - HI height max. mm: 26.42
  - S material thickness mm: 4.60 / 3.35
  - DP pin thickness max. mm: 10.19
  - A1 width from rivet end mm: 41.20
  - B extension width mm: 50
  - bearing area mm²: 295
  - breaking load N: 780
  - min. tensile strength kN: 95.00
  - average tensile strength kN: 98.50
  - weight kg/m: 3.39
