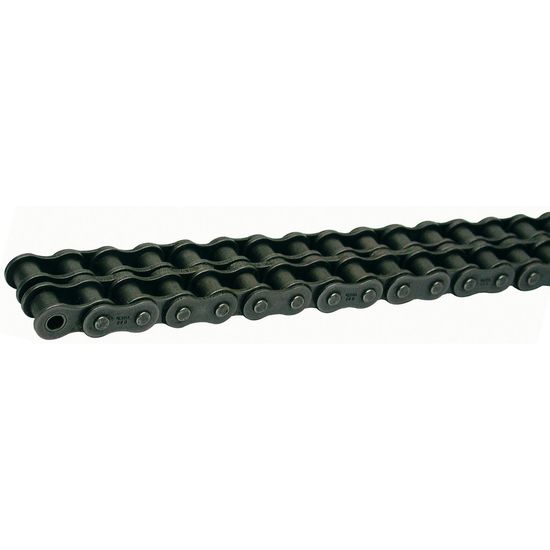

Double roller chain 1/2 Din8187 Euro 10 meters

Qty:

Add to cart

Lägg i kundvagnen

• Info
• Stock status

  Product IDRKR08B2

  ManufacturerREGINA

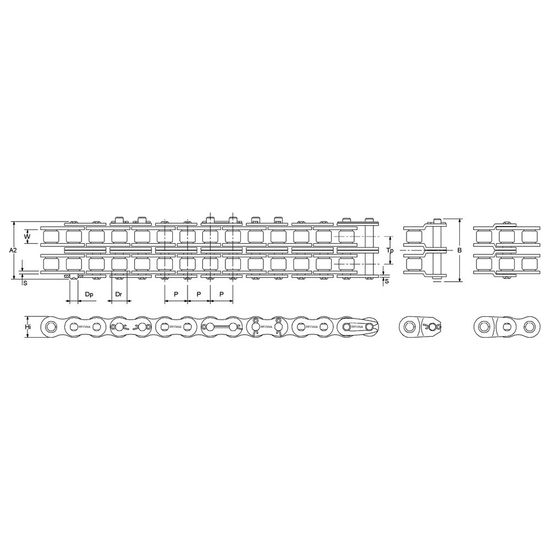

  Characteristics- Length: 10 meters
  - division 1/2 inch

  - Length: 10 meters
  - Pitch: 1/2"
  - DR roller Ø mm: 8.51
  - W internal dimension min. mm: 7.75
  - HI max. height mm: 11.81
  - S material thickness mm: 1.63 / 1.40
  - TP pitch: 13.92
  - DP pin thickness max. mm: 4.45
  - A2 width from the end of the rivet mm: 30.4
  - B extension width mm: 38.2
  - bearing area mm²: 100
  - breaking load N: 250
  - min. breaking strength kN: 31.1
  - average breaking strength kN: 35.10
  - weight kg/m: 1.36
