Pneumatic Regulator 3/8 Sy1 Reg 0-12Bar Synthesis

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDMWP5613R163

  ManufacturerMETAL WORK

  Characteristics

  - Synthesizer SY1
  - The pressure regulator regulates the pressure in the compressed air network to fit the control unit
  - maintain the controlled pressure stable
  - Lockable setting button
  - thread G 3/8 "
  - pressure gauge / venting G 1/8 "
  - Setting range 0 to 12 bar
  - max. operating pressure 15 bar
  - max. flow at a pressure of 6.3 bar (pressure drop 0.5 bar) at 2900 Nl/min
  - max. flow at 6.3 bar (pressure drop 1 bar) 3350 Nl/min
  - max. flow (safety valve) at 6.3 bar at 70 Nl/min
  - flow (venting) at 6.3 bar at 500 Nl/min
  - Operating temperature -10 ... + 50 ° C
  - medium: compressed air or inert gases
  - Installation in desired position
  - mounting screws M4
  - Weight 179 g

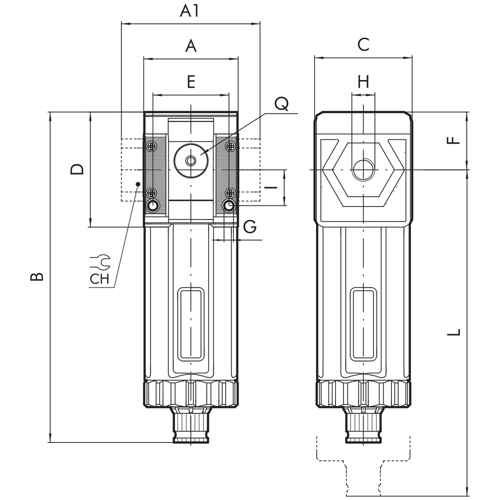

  Dimensions (mm):
  - Chapter 42
  - A1 44
  - B 102
  - C 44
  - D 51.5
  - E 33.5
  - F 25.8
  - G M4
  - and 16
  - L M30x1.5
  - M (pressure gauge / venting) 1/8 "
