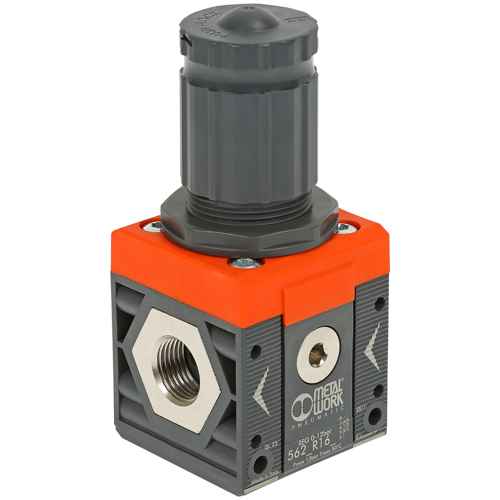

Pneumatic Regulator 1/2 Sy2 Reg 0-12Bar Synthesis

Qty:

Add to cart

LĂ€gg i kundvagnen

• Info
• Stock status

  Product IDMWP5624R164

  ManufacturerMETAL WORK

  Characteristics

  - SYNTHESIS control SY2
  - a pressure regulator controlled by the pneumatic supply pressure to the control device to fit
  - to maintain a stable regulated pressure
  - a lockable control lever
  - thread G 1/2"
  - pressure gauge / venting G 1/4"
  - to adjust the range 0 - 12 bar
  - max. working pressure 13 bar
  - max. flow at 6.3 bar (pressure drop 0.5 bar) 4300 Nl/min
  - max. flow at a pressure of 6.3 bar (pressure drop 1 bar) 7400 Nl/min
  - max. flow rate (valve) at a pressure of 6.3 bar at 100 Nl/min
  - flow (exhaust) at 6.3 bar at 1400 Nl/min
  - Operating temperature -10 ... + 50 ° C
  - medium: air or inert gas
  - installation in upright position
  - fastening screws M5
  - weight 519 g

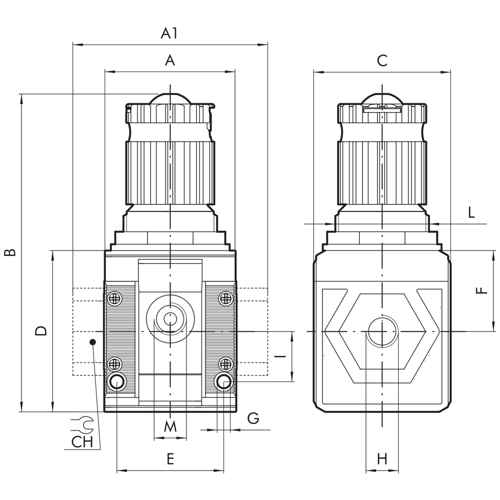

  Dimensions (mm):
  - A 61
  - B 142
  - C 61
  - D 70.5
  - E 47.5
  - 38.2 F
  - G M5
  - I 22.5
  - M38x2 L
  - M (overpressure / exhaust) 1/4 "
